Installation Procedure

Prepare the brake caliper bracket bolts and the bracket threaded holes for assembly:
- Thoroughly clean the residue from the bolt threads with denatured alcohol or equivalent and allow to dry.
- Thoroughly clean the residue from the threaded holes with denatured alcohol or equivalent and allow to dry.
- Apply threadlocker to 2/3 of the threaded length of the bolts. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

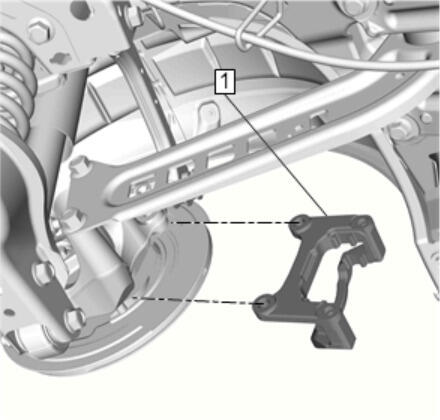

Rear Brake Caliper Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Brake Caliper Bracket Bolt (1) - Install and tighten [2x]
- First Pass: 100 N.m (74 lb ft)
- Final Pass: 15 - 30 degrees
Courtesy of GENERAL MOTORS COMPANY

Caliper Guide Pin Seal (1) - Install [2x]
Apply a thin coat of high-temperature silicone brake lubricant to the caliper guide pins.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The lower caliper guide pin is equipped with a bushing and must be installed in the same location.

Caliper Lower Guide Pin (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Caliper Upper Guide Pin (1) - Install
Rear Disc Brake Pad - Remove - Rear Disc Brake Pads Replacement (Without J71) , or Rear Disc Brake Pads Replacement (With J71)
Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
