Installation Procedure

Prepare the brake caliper bracket bolts and the bracket threaded holes for assembly:
- Thoroughly clean the residue from the bolt threads with denatured alcohol or equivalent and allow to dry.
- Thoroughly clean the residue from the threaded holes with denatured alcohol or equivalent and allow to dry.
- Apply threadlocker to 2/3 of the threaded length of the bolts. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

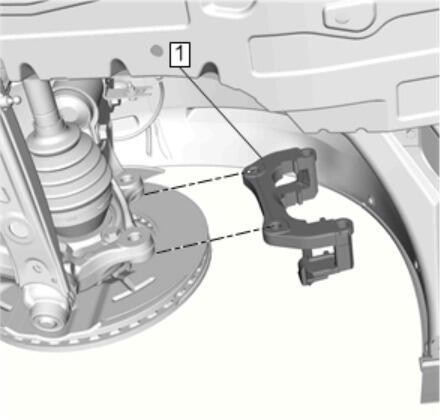

Front Brake Caliper Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

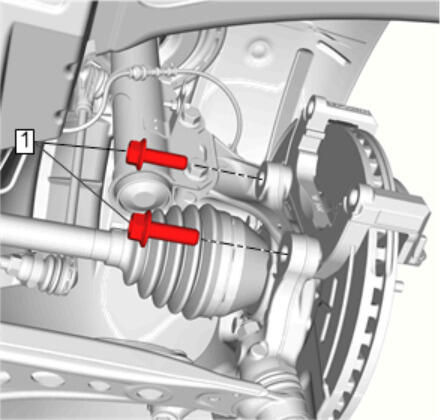

Brake Caliper Bracket Bolt (1) - Install and tighten [2x]
- First Pass: 150 N.m (111 lb ft)
- Final Pass: 15 - 30 degrees
Courtesy of GENERAL MOTORS COMPANY

Caliper Guide Pin Seal (1) - Install [2x]
Apply a thin coat of high-temperature silicone brake lubricant to the caliper guide pins.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The lower caliper guide pin is equipped with a bushing and must be installed in the same location.

Caliper Lower Guide Pin (1) - Install
Ensure the guide pin seal is fully seated in the groove of the caliper guide pin.
Gently lift the edge of the guide pin seal while pushing the guide pin into the caliper bracket bore to expel any trapped air.
Courtesy of GENERAL MOTORS COMPANY

Caliper Upper Guide Pin (1) - Install
Ensure the guide pin seal is fully seated in the groove of the caliper guide pin.
Gently lift the edge of the guide pin seal while pushing the guide pin into the caliper bracket bore to expel any trapped air.
Front Disc Brake Pad - Install Front Disc Brake Pads Replacement
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
