Front Brake Caliper Bleeder Valve Replacement

Courtesy of GENERAL MOTORS COMPANY

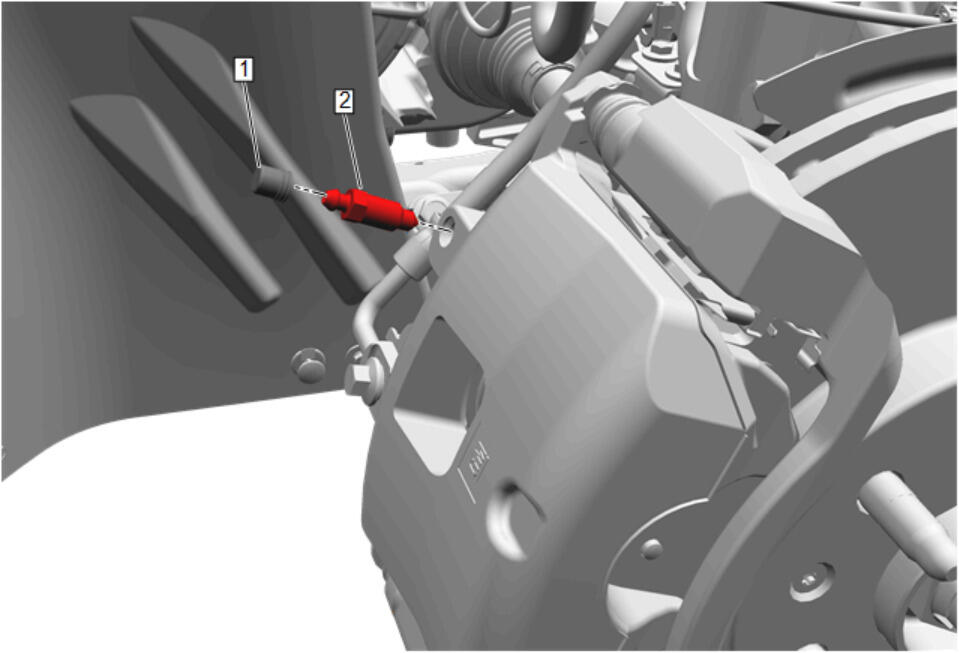

Callout	Component Name
WARNING: The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury. WARNING: Brake Dust Warning WARNING: Brake Fluid Irritant Warning CAUTION: Brake Fluid Effects on Paint and Electrical Components Caution Preliminary Procedure Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
1	Front Brake Caliper Bleeder Valve Cap
2	Front Brake Caliper Bleeder Valve CAUTION: Component Fastener Tightening Caution Tighten 17 N.m (13 lb ft) Procedure Install the tire and wheel assembly. Tire and Wheel Removal and Installation Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
