Center Pillar Lower Trim Panel Replacement

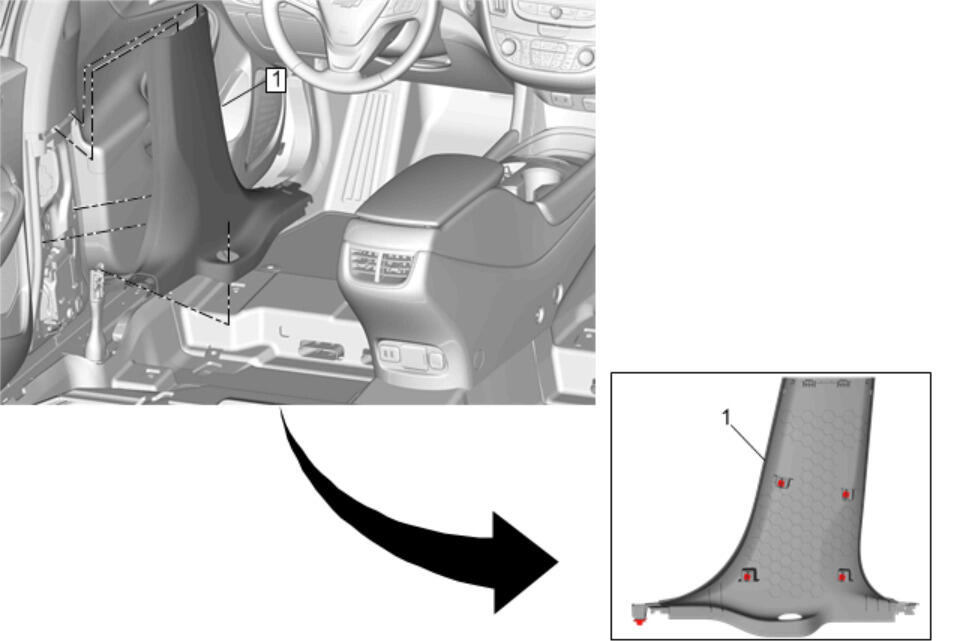

GM4223755Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Sill Garnish Molding Replacement
  2. Rear Side Door Sill Garnish Molding Replacement
  3. Remove the driver or passenger seat belt anchor plate tensioner cover and fastener. Front Seat Belt Retractor Replacement
  4. Move the seat to the full forward position.
1 Center Pillar Lower Trim Panel Assembly

Procedure

  1. Pull the center pillar lower trim panel inward and upward to disengage the retainers and to clear the front seat tensioner assembly.
  2. Ensure the seat belt webbing does not become trapped during installation.
