Instrument Panel Trim Plate Applique Replacement - Right Side

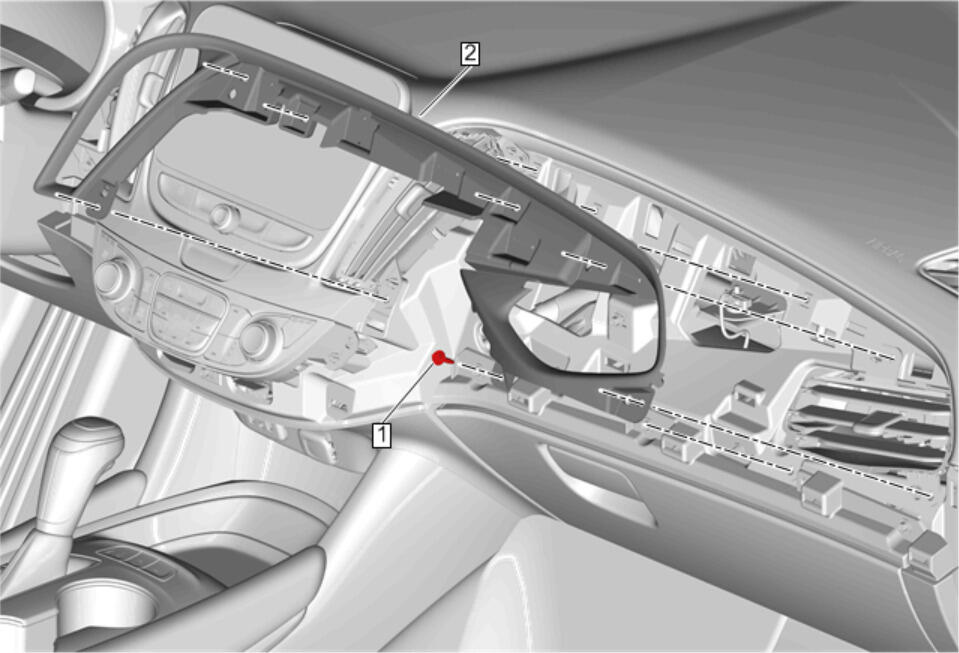

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Trim Pad Replacement - Right Side |
|
| 1 | Instrument Panel Trim Plate Applique Bolt [7x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Trim Plate Applique - Right Side Procedure Use a flat bladed plastic trim tool. |
