Rear Side Door Accessory Switch Mount Plate Replacement

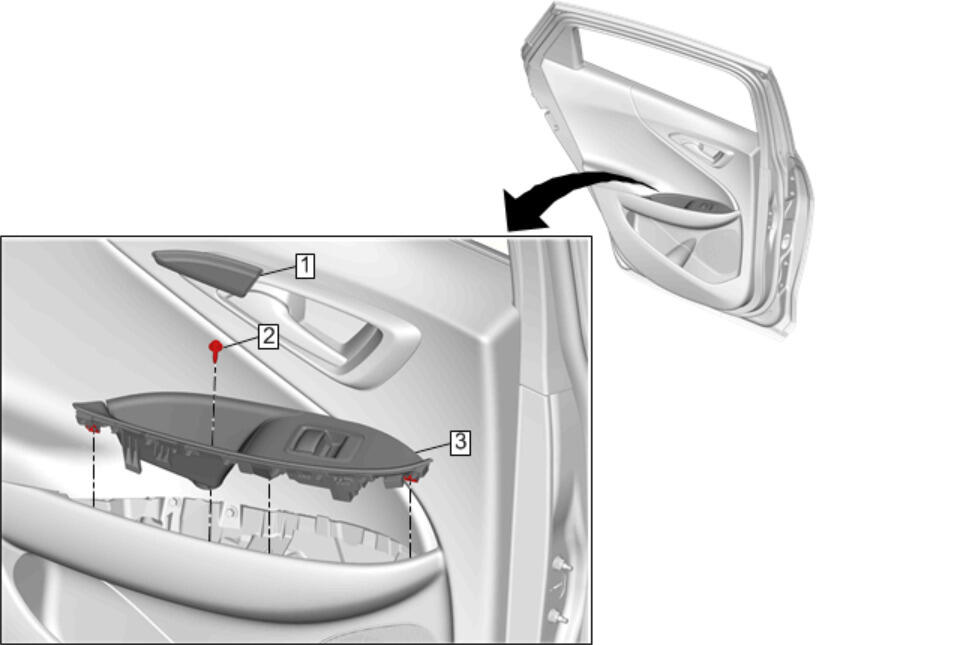

GM4217927Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Armrest Pull Cup Bolt Cap
2 Rear Side Door Armrest Pull Cup Fastener
CAUTION:

Refer to Fastener Caution .

Tighten


2.5 N.m (22 lb in)
3 Rear Side Door Accessory Switch Mount Plate

Procedure

  1. Using a flat-bladed plastic trim tool, start at the front of the accessory switch mount plate and gently insert trim tool to lift the rear side door accessory switch mount plate from the door trim assembly.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
