Front Side Door Accessory Switch Mount Plate Replacement (Passenger Side)

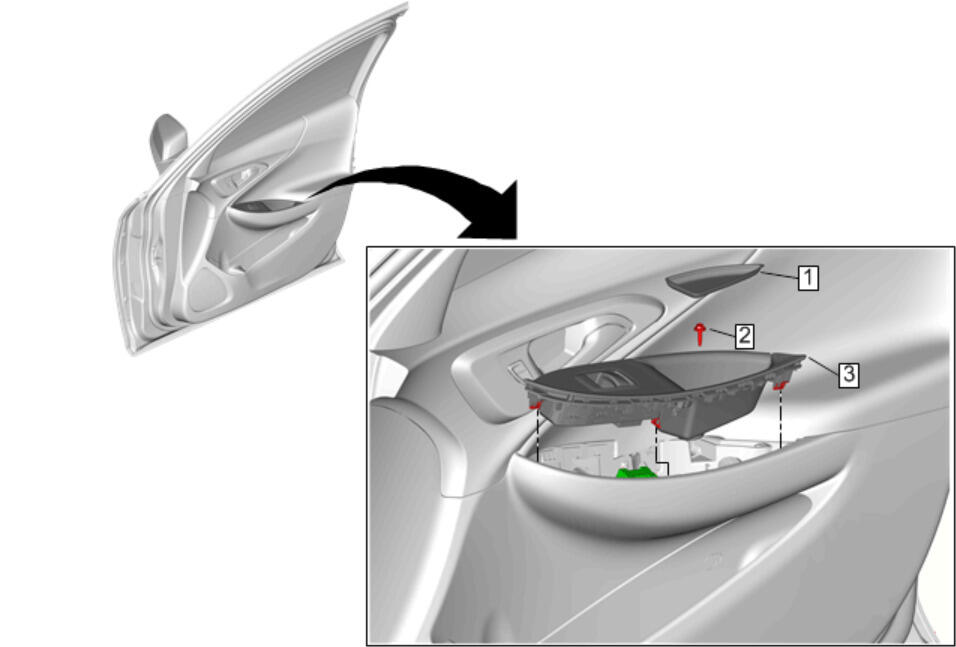

GM4214474Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Armrest Pull Cup Bolt Cap
2 Front Side Door Armrest Pull Cup Fastener
CAUTION:

Refer to Fastener Caution .

Tighten


2.5 N.m (22 lb in)
3 Front Side Door Armrest Switch Mount Plate Assembly

Procedure

  1. Using a flat-bladed plastic trim tool, start at the front of the armrest switch mount plate and gently insert trim tool to lift the front side door armrest switch mount plate from the door trim assembly.
  2. Disconnect the electrical connector.
  3. Transfer parts as necessary.
