Front Side Door Accessory Switch Mount Plate Replacement (Driver Side)

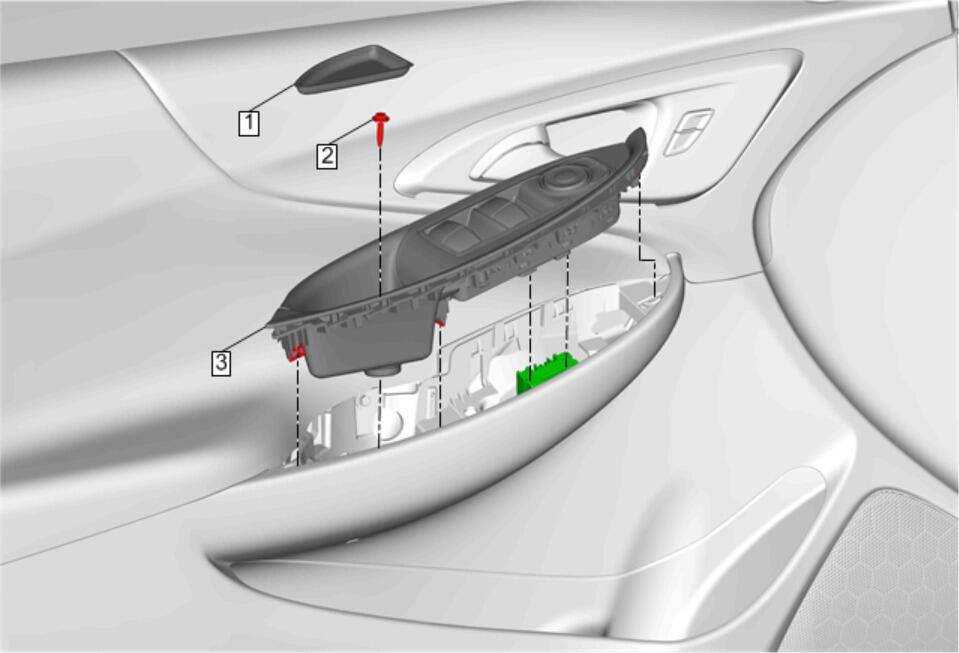

GM4213892Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Armrest Pull Cup Bolt Cap
2 Front Side Door Armrest Pull Cup Fastener
CAUTION:

Refer to Fastener Caution .

Tighten


2.5 N.m (22 lb in)
3 Front Side Door Accessory Switch Mount Plate

Procedure

  1. Using a flat-bladed plastic trim tool, start at the front of the accessory switch mount plate and gently insert trim tool to lift the front side door accessory switch mount plate from the door trim assembly.
  2. Disconnect the electrical connectors.
  3. Transfer parts as necessary.
