Rear Compartment Lid Replacement

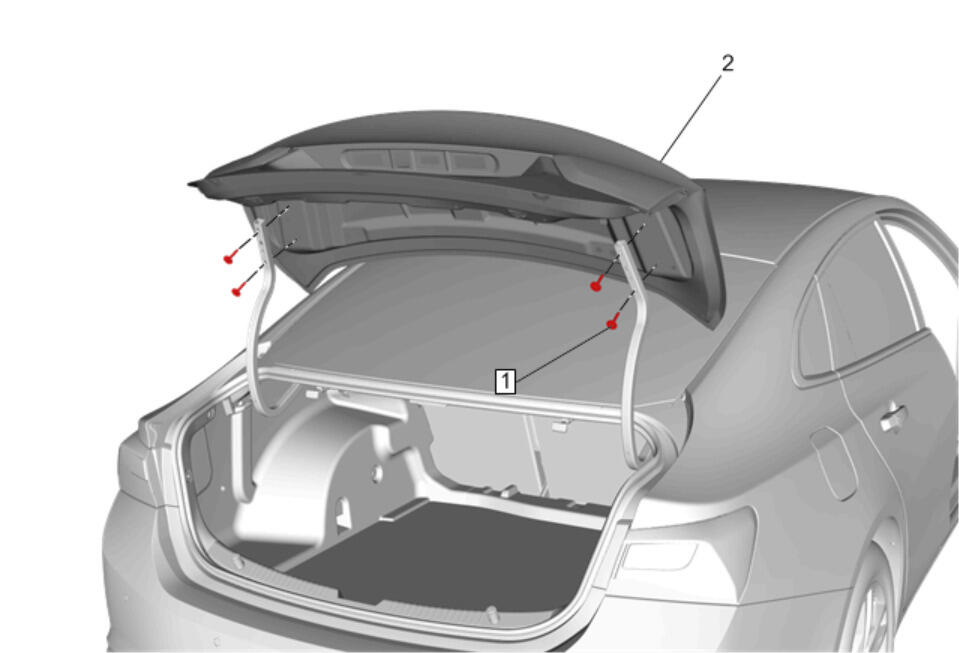

GM4215332Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Lid Hinge Torque Rod Replacement
1 Rear Compartment Lid Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Rear Compartment Lid

Procedure

  1. Disconnect the electrical connector.
  2. With the aid of an assistant, remove the rear compartment lid.
  3. Transfer components as necessary.
  4. Rear Compartment Lid Adjustment
