Rear Compartment Lid Hinge Torque Rod Replacement

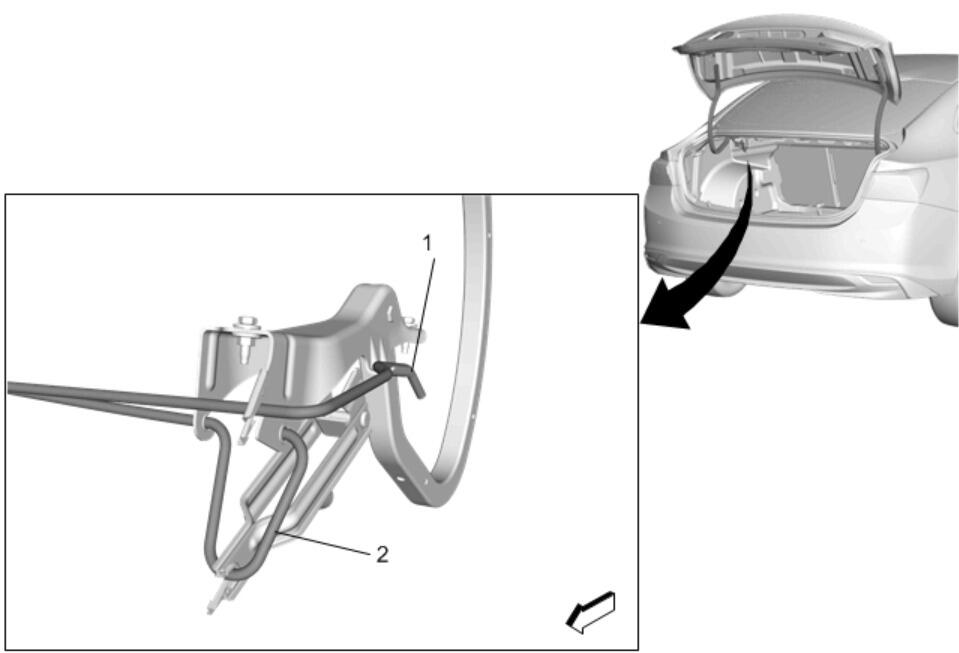

GM4215398Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Rear Compartment Lid Hold-Open Device Warning .

Preliminary Procedure Open and support the rear compartment lid.Special Tools BO-125  Torque Rod LifterEquivalent regional tools: Special Tools
1 Rear Compartment Lid Hinge Torque Rod - Right Side
NOTE:

Only use the special tool to remove and install the rear compartment lid hinge torque rod.
2 Rear Compartment Lid Hinge Torque Rod - Left Side
NOTE:

Only use the special tool to remove and install the rear compartment lid hinge torque rod.
