Rear Compartment Lid Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

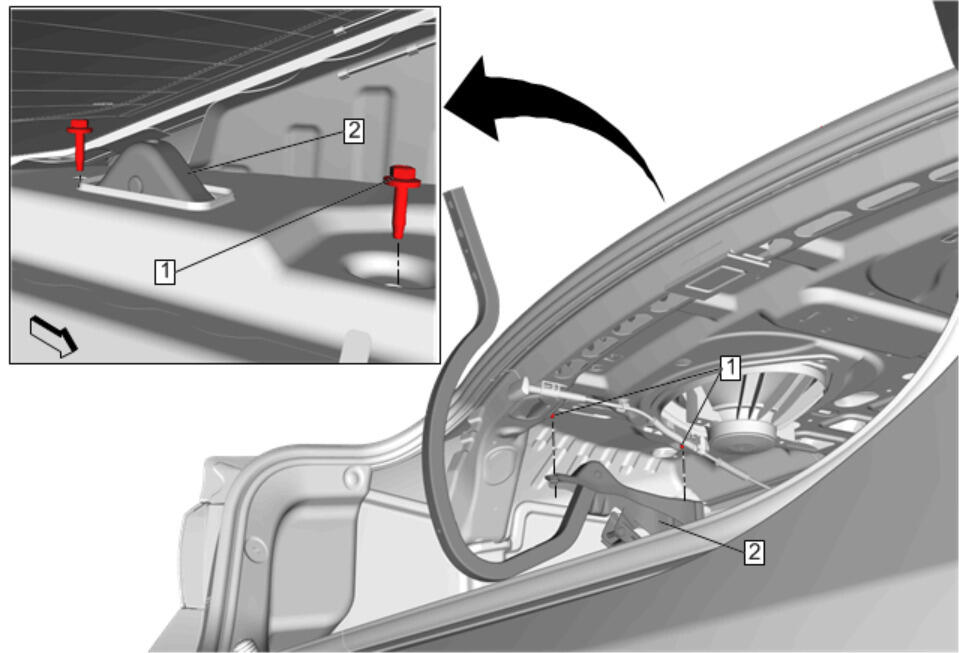

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Hinge Torque Rod Replacement Rear Compartment Lid Replacement Rear Window Panel Trim Replacement
1	Rear Compartment Lid Hinge Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Compartment Lid Hinge Procedure Rear Compartment Lid Adjustment

Callout

Component Name

Preliminary Procedure

Rear Compartment Lid Hinge Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Compartment Lid Hinge
Procedure
Rear Compartment Lid Adjustment
