Hood Primary Latch Replacement

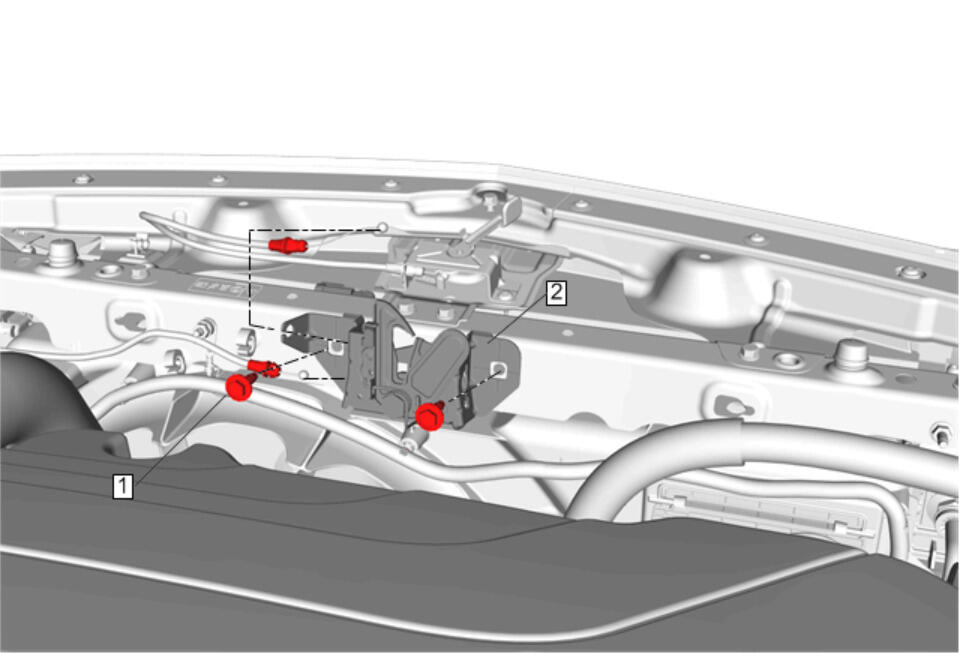

GM4215328Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Mark the position of the hood latch with a grease pencil.
1 Hood Primary Latch Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Hood Primary Latch

Procedure

  1. Disconnect the release cable from the hood primary latch.
  2. Disconnect the hood secondary latch release cable from the hood primary latch.
  3. Align the hood primary latch if necessary.
  4. Disconnect the electrical connector and retainer from under the upper tie bar.
