Front Fender Replacement

Courtesy of GENERAL MOTORS COMPANY

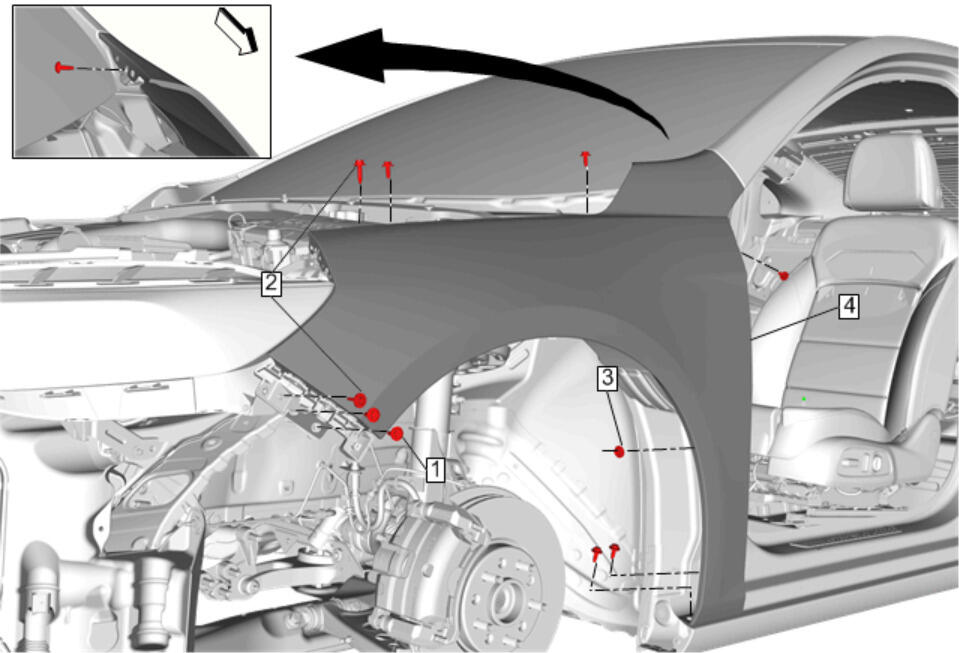

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Air Inlet Grille Panel Extension Replacement Reposition the windshield washer hose.
1	Front Fender Bolt [8x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Headlamp Bolt [2x] Tighten 2.5 N.m (22 lb in)
3	Front Fender Nut Tighten 9 N.m (80 lb in)
4	Front Fender Procedure Transfer components as necessary.
