Front End Sheet Metal Diagonal Brace Reinforcement Replacement

Courtesy of GENERAL MOTORS COMPANY

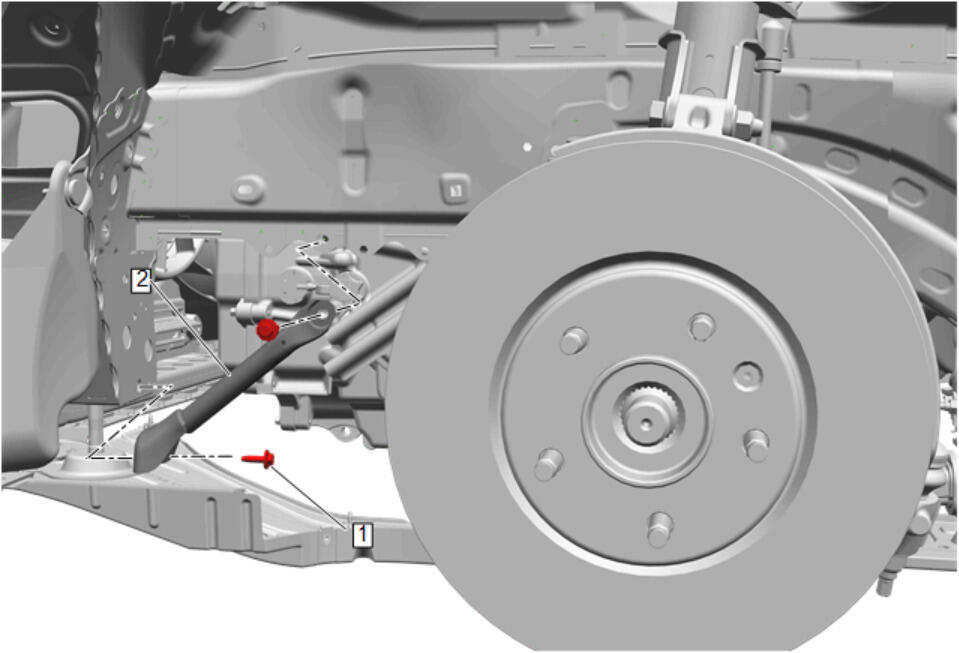

Callout	Component Name
Preliminary Procedure  Reposition the appropriate front wheelhouse liner: For left side refer to Front Wheelhouse Liner Replacement - Left Side . For right side refer to Front Wheelhouse Liner Replacement - Right Side .
1	Front End Sheet Metal Diagonal Brace Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front End Sheet Metal Diagonal Brace Reinforcement
