Instrument Panel Compartment Door Opening Frame Replacement

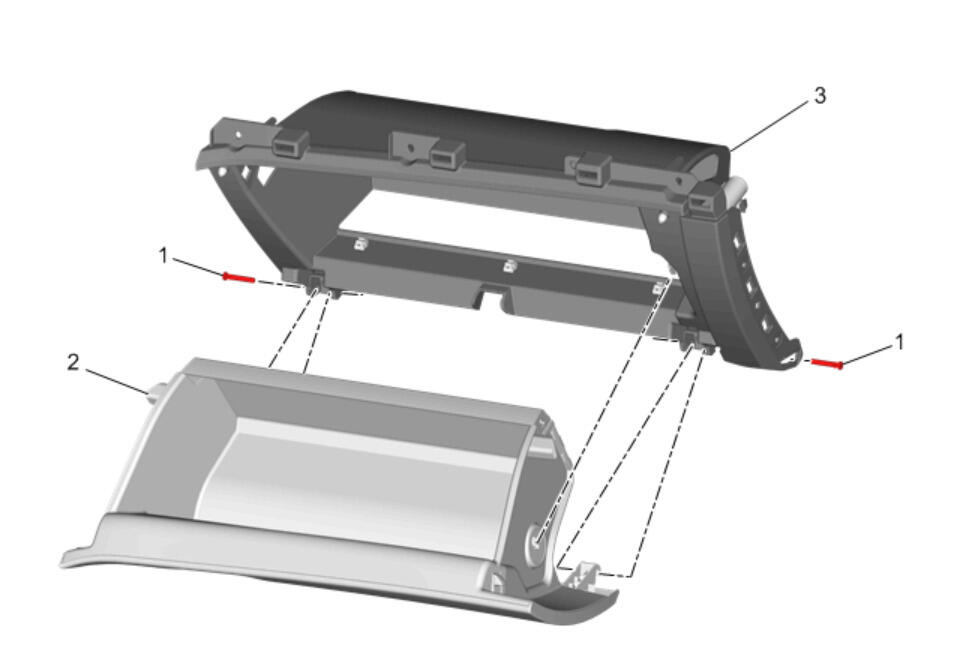

GM4231414Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Compartment Replacement
1 Instrument Panel Compartment Door Hinge [2x]
Procedure
Use a suitable tool.
2 Instrument Panel Compartment Door

Procedure

  1. Disconnect the instrument panel compartment door dampener from the instrument panel compartment door.
  2. Squeeze the sides of the compartment and lower the compartment past the stops.
3 Instrument Panel Compartment Door Opening Frame
Procedure
Transfer components as necessary.
