Front Floor Lower Console Replacement

Courtesy of GENERAL MOTORS COMPANY

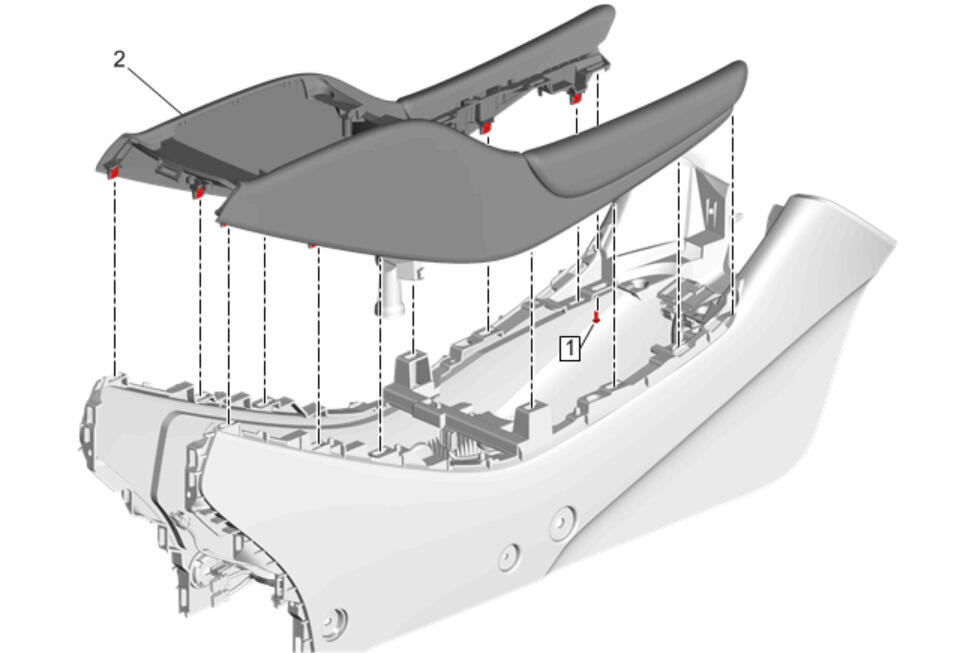

Callout	Component Name
Preliminary Procedure Front Floor Console Compartment Replacement
1	Front Floor Console Side Trim Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Front Floor Lower Console Procedure Use a plastic trim tool if necessary. Disconnect electrical connections, if applicable. Transfer components as necessary.

Callout

Component Name

Front Floor Console Side Trim Bolt [2x]

CAUTION:

Tighten

1 N.m (9 lb in)

Front Floor Lower Console

Procedure
