Removal Procedure

  1. Transmission Control Lever Knob Replacement - Remove

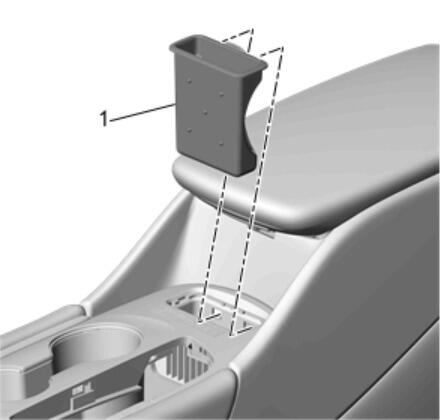

  2. GM4223162Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Front Compartment (1) - Remove

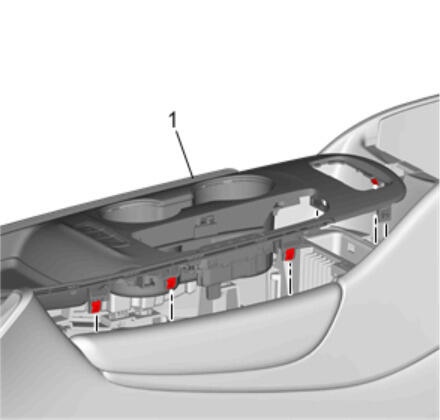

  3. GM4223165Courtesy of GENERAL MOTORS COMPANY

    Starting from the rear, use a plastic trim tool to release the retainer securing the Front Floor Console Trim Plate (1) to the Front Floor Console Assembly.

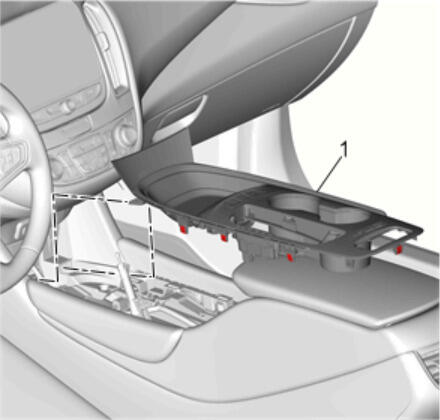

  4. GM4223166Courtesy of GENERAL MOTORS COMPANY

    Pull the Front Floor Console Trim Plate (1) rearward to disengage the tabs.

  5. Disconnect the electrical connectors.
  6. Transfer components as necessary.
