Front Floor Console Transmission Shift Opening Bezel Replacement

Courtesy of GENERAL MOTORS COMPANY

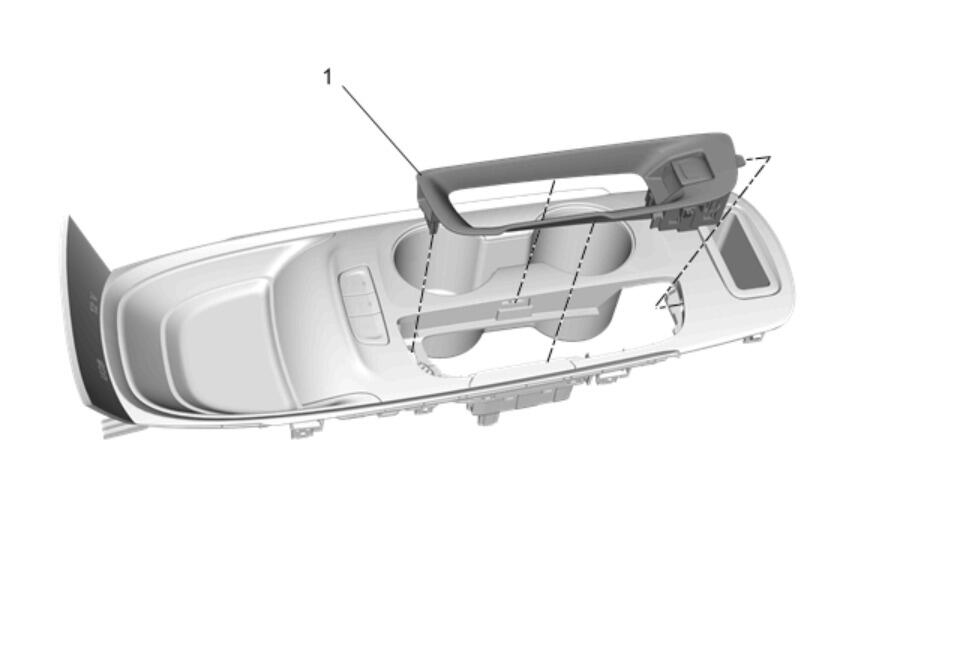

Callout	Component Name
Preliminary Procedure Front Floor Console Trim Plate Replacement
1	Front Floor Console Transmission Shift Opening Bezel Procedure Use a plastic trim tool if necessary. Lift the front of the bezel first and rotate upward and pull forward to disengage the rear tab of the bezel. Transfer components as necessary.

Callout

Component Name

Front Floor Console Transmission Shift Opening Bezel

Procedure

Use a plastic trim tool if necessary.
Lift the front of the bezel first and rotate upward and pull forward to disengage the rear tab of the bezel.
Transfer components as necessary.
