Removal Procedure

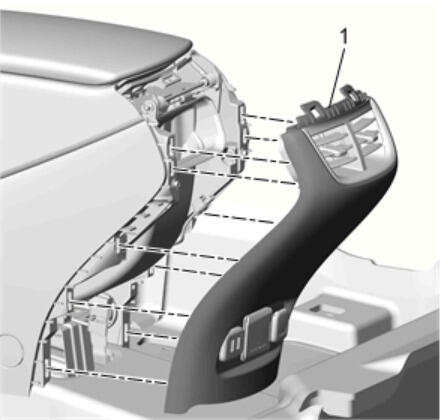

Use a flat bladed plastic trim tool to release the retainers securing the upper front floor console rear trim panel (1) to the front floor console assembly.
Use a flat bladed plastic trim tool to release the retainers securing the lower front floor console rear trim panel (1) to the front floor console assembly.
- Disconnect electrical connections, if applicable.
- Transfer components as necessary.
