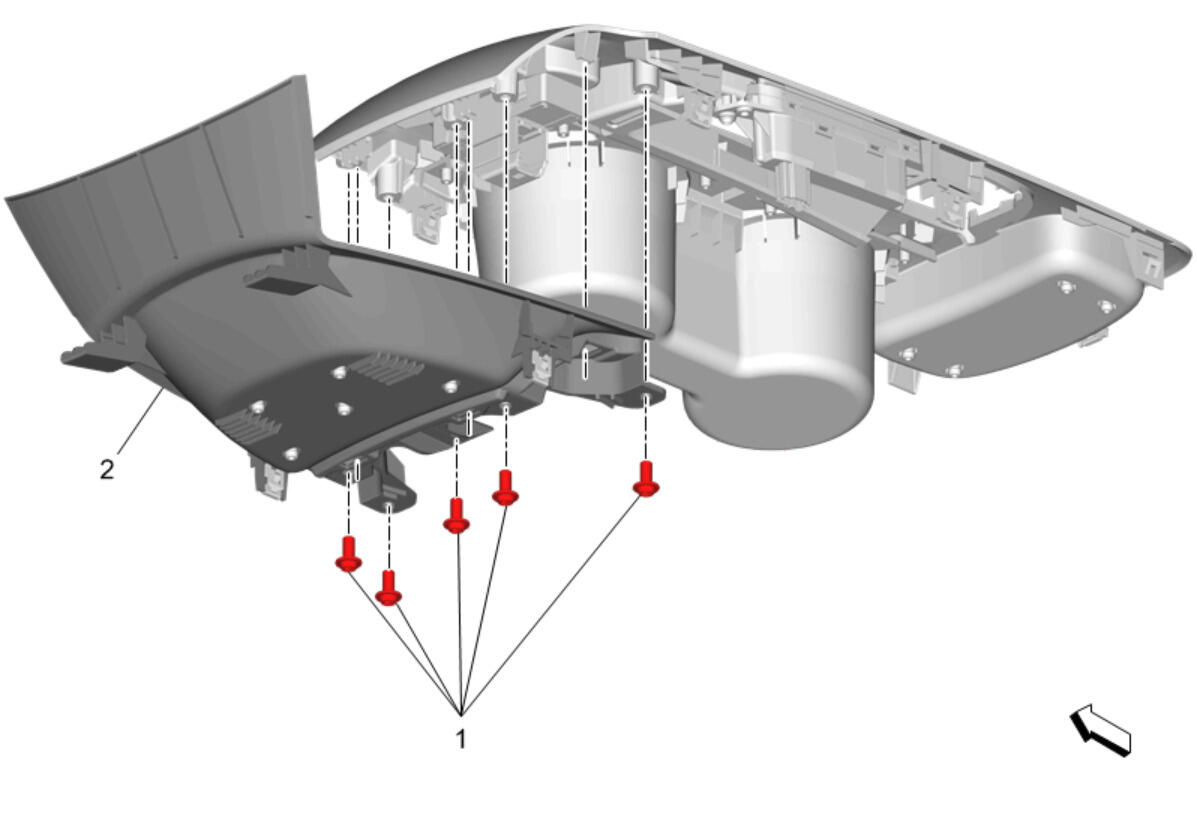

Front Floor Console Front Compartment Replacement (Front Bin Base Level)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Floor Console Trim Plate Replacement
1	Front Floor Console Bolt [5x] CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Front Floor Console Front Compartment
