Removal Procedure

  1. Front Floor Console Rear Trim Panel Replacement  - Remove

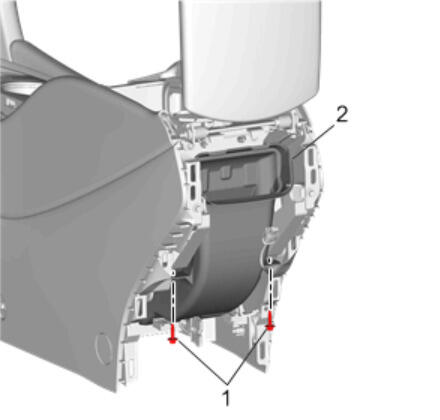

  2. GM4224053Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Bolt (1) - Remove [2x]

  3. Lower the Front Floor Console Rear Air Duct (2) to access the fasteners for the armrest hinge bolts.

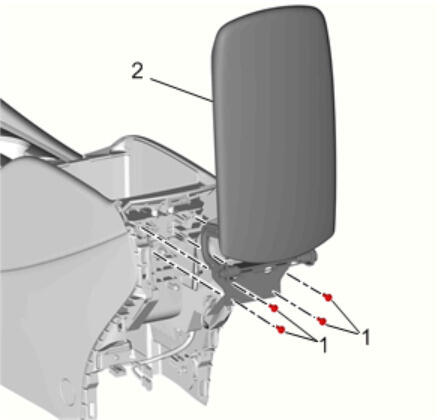

  4. GM4224054Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Hinge Bolt (1) - Remove [4x]

  5. Front Floor Console Armrest (2) - Remove
  6. Transfer components as necessary.
