Instrument Panel Compartment Air Duct Replacement (K4C)

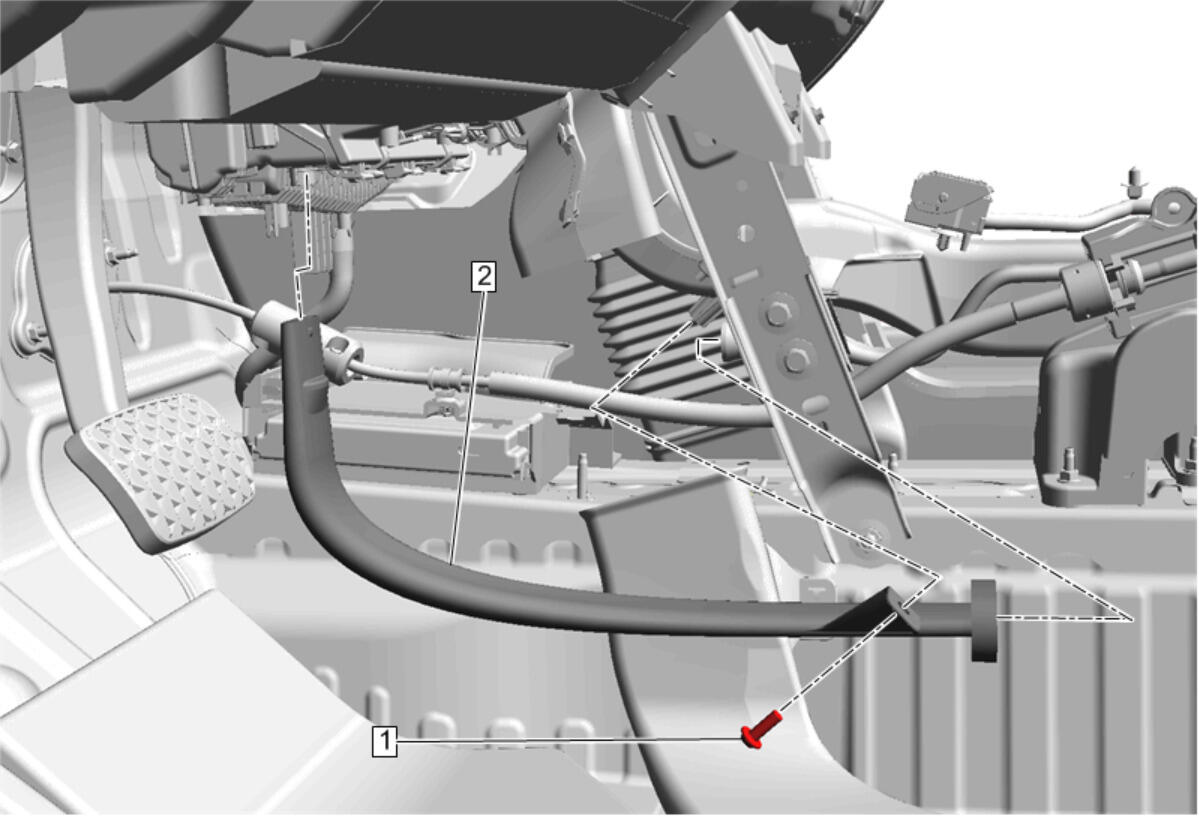

GM4217740Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Floor Rear Air Outlet Duct Adapter Replacement (Left Side) , or Floor Rear Air Outlet Duct Adapter Replacement (Right Side)  - Left Side
1 Instrument Panel Compartment Air Duct Bolt
CAUTION:

Refer to Fastener Caution .

Tighten


1.5 N.m (13 lb in)
2 Instrument Panel Compartment Air Duct
