Multifunction Power Supply Converter Bracket Replacement

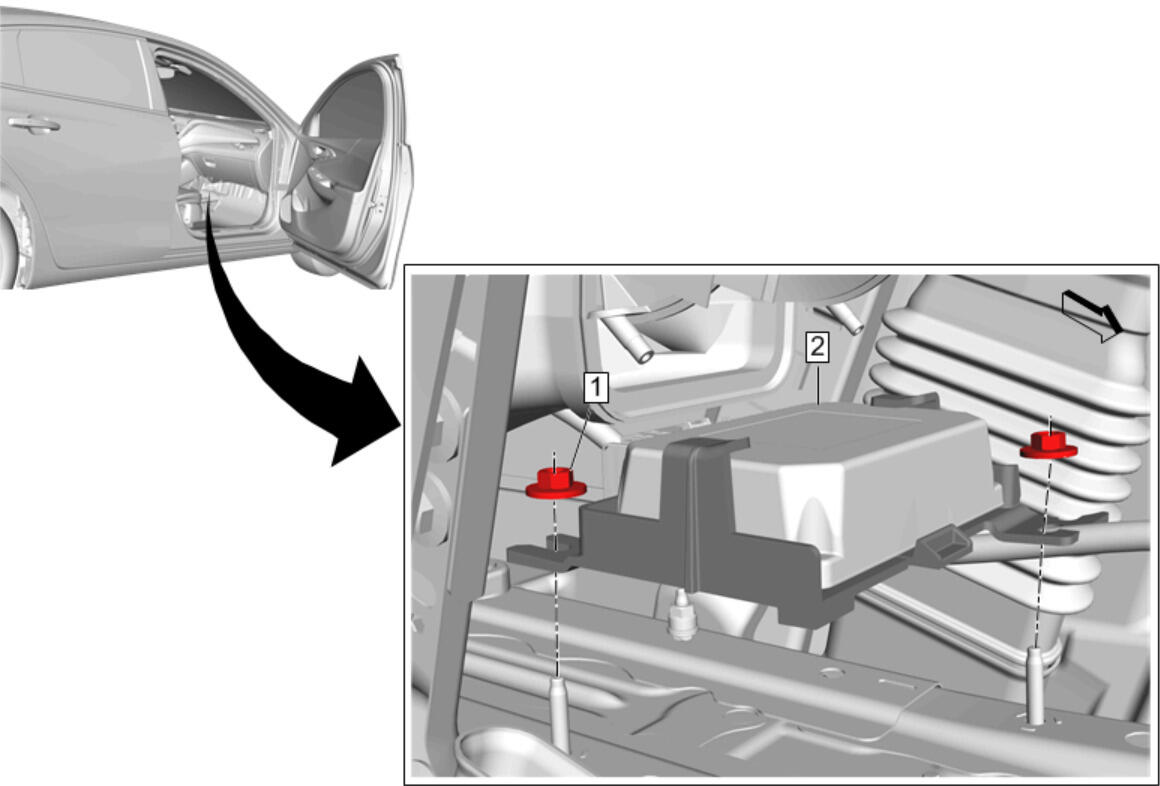

GM4256575Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Floor Rear Air Outlet Duct Adapter Replacement (Left Side) , or Floor Rear Air Outlet Duct Adapter Replacement (Right Side)
  2. Body Control Module Bracket Replacement
1 Multifunction Power Supply Converter Bracket Nut [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Multifunction Power Supply Converter Bracket

Procedure

  1. Disconnect all electrical connectors.
  2. Transfer components as necessary.
