Water Pump, Air Conditioning Compressor, and Generator Belt Replacement

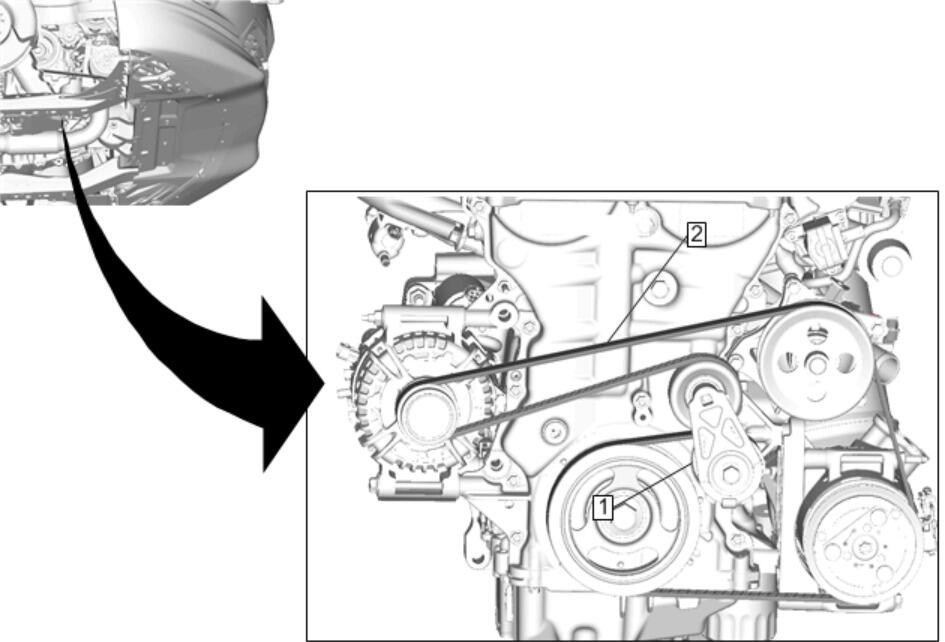

GM3972825Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Wheelhouse Liner Replacement
1 Drive Belt Tensioner

Procedure

  1. Use the proper tool to rotate the drive belt tensioner.
  2. Clean and inspect the drive belt surfaces of all the pulleys.
2 Drive Belt

Procedure

  1. Remove the drive belt from the pulleys and tensioner.
  2. Inspect the drive belt for correct alignment.
