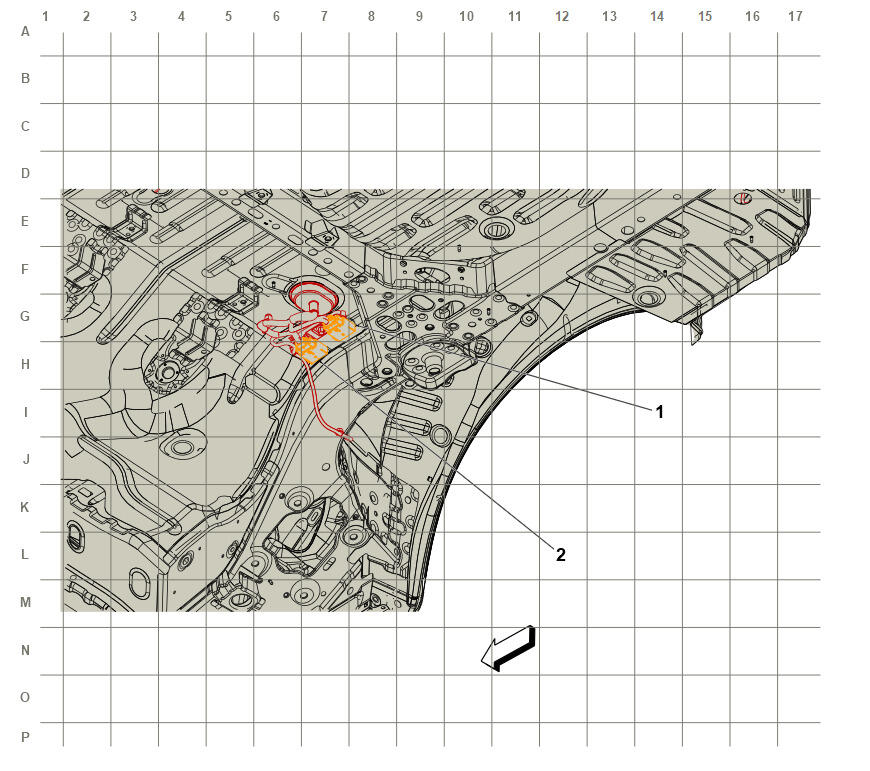

Body Harness Routing - Underbody - Right Rear
Body Harness Routing - Underbody - Right Rear
| Harness Name | Callout |
|---|---|
| X408 Rear Chassis Harness to Body Harness X408 Rear Chassis Harness to Body Harness (J69) , or X408 Rear Chassis Harness to Body Harness (J71) | 1 |
| X350 Fuel Tank Harness to Body Harness X350 Fuel Tank Harness to Body Harness | 2 |
