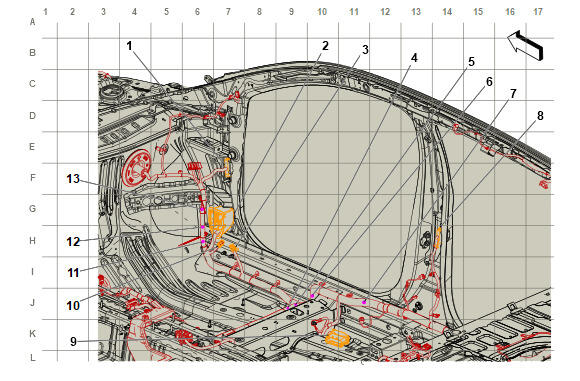

Body Harness Routing - Passenger Compartment - Right Front
Body Harness Routing - Passenger Compartment - Right Front
| Harness Name | Callout |
|---|---|
| X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness ( ) | 1 |
| X220 Instrument Panel Harness to Body Harness X220 Instrument Panel Harness to Body Harness ( ) | 2 |
| X214 Body Harness COAX to Instrument Panel Harness COAX (UE1) X214 Body Harness to Instrument Panel Harness (UE1) | 3 |
| J344 Body Harness | 4 |
| J312 Body Harness | 5 |
| J321 Body Harness | 6 |
| J308 Body Harness | 7 |
| X800 Right Rear Door Harness to Body Harness X800 Right Rear Door Harness to Body Harness ( ) | 8 |
| X320 Passenger Seat Harness to Body Harness X320 Passenger Seat Harness to Body Harness | 9 |
| X213 Body Harness COAX to Instrument Panel Harness COAX X213 Body Harness COAX to Instrument Panel Harness COAX (IOR+U2K) , or X213 Body Harness COAX to Instrument Panel Harness COAX (IOR-U2K) , or X213 Body Harness COAX to Instrument Panel Harness COAX (IOU+U2K) , or X213 Body Harness COAX to Instrument Panel Harness COAX (IOU-U2K) | 10 |
| J207 Body Harness | 11 |
| J206 Body Harness | 12 |
| J205 Body Harness | 13 |
