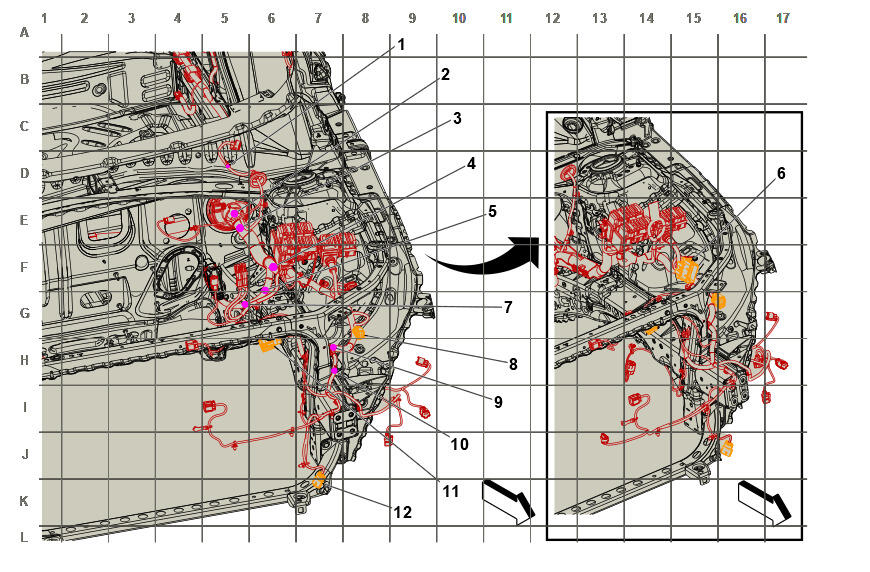

Body Harness Routing - Engine Compartment - Left Side Engine Compartment
Body Harness Routing - Engine Compartment - Left Side Engine Compartment
| Harness Name | Callout |
|---|---|
| J104 Body Harness | 1 |
| J107 Body Harness | 2 |
| J106 Body Harness | 3 |
| J102 Body Harness | 4 |
| J103 Body Harness | 5 |
| X115 Engine Harness to Body Harness X115 Engine Harness to Body Harness | 6 |
| J105 Body Harness | 7 |
| X110 Body Harness to Left Headlamp Harness (T4L/T4A) X110 Body Harness to Left Headlamp Harness (T4A) , or X110 Body Harness to Left Headlamp Harness (T4L) | 8 |
| J100 Body Harness | 9 |
| J131 Body Harness | 10 |
| X118 Body Harness to Cooling Fan Harness X118 Body Harness to Cooling Fan Harness | 11 |
| X119 Body Harness to Ambient Air Temp Sensor Harness (VRI) X119 Body Harness to Ambient Air Temp Sensor Harness (-VRI) , or X119 Body Harness to Ambient Air Temp Sensor Harness (VRI) | 12 |
