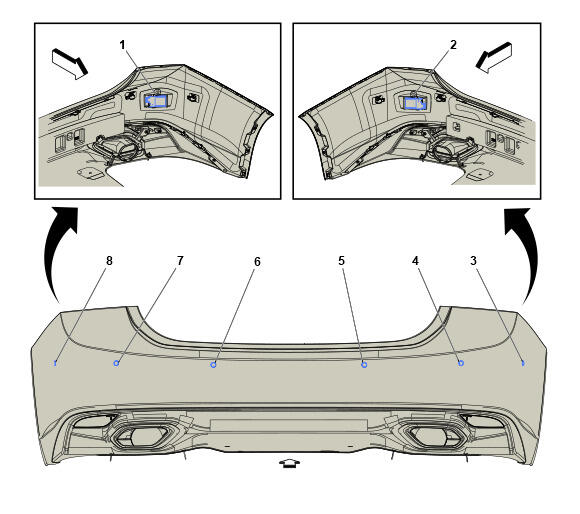

Rear Fascia Components
Rear Fascia Components
| Component Name | Callout |
|---|---|
| B218L Side Object Sensor Module - Left (UKC) B218L Side Object Sensor Module - Left (UKC) | 1 |
| B218R Side Object Sensor Module - Right (UKC) B218R Side Object Sensor Module - Right (UKC) | 2 |
| B306N Parking Assist Sensor - Side Right Rear (UFQ) B306N Parking Assist Sensor - Side Right Rear | 3 |
| B306H Parking Assist Sensor - Rear Right Outer (UD5/UFQ) B306H Parking Assist Sensor - Rear Right Outer | 4 |
| B306G Parking Assist Sensor - Rear Right Middle (UD5/UFQ) B306G Parking Assist Sensor - Rear Right Middle | 5 |
| B306F Parking Assist Sensor - Rear Left Middle (UD5/UFQ) B306F Parking Assist Sensor - Rear Left Middle | 6 |
| B306E Parking Assist Sensor - Rear Left Outer (UD5/UFQ) B306E Parking Assist Sensor - Rear Left Outer | 7 |
| B306M Parking Assist Sensor - Side Left Rear (UFQ) B306M Parking Assist Sensor - Side Left Rear | 8 |
