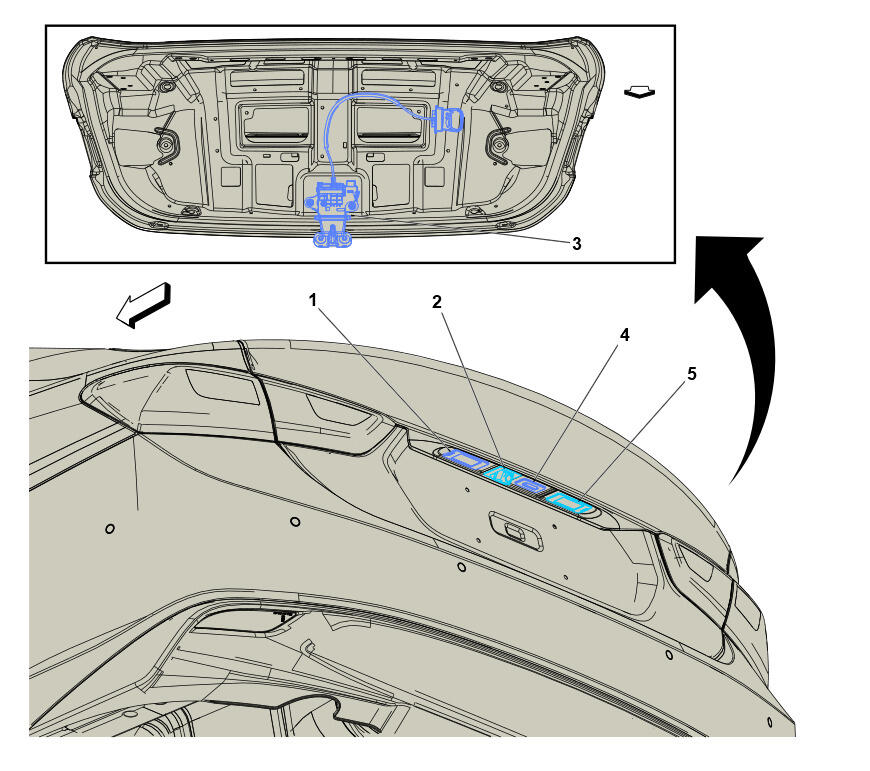

Rear Compartment Lid Components
Rear Compartment Lid Components
| Component Name | Callout |
|---|---|
| E7L License Plate Lamp - Left E7L License Plate Lamp - Left | 1 |
| B87 Rearview Camera (UVC) B87 Rearview Camera (UVB) , or B87 Rearview Camera (UVC) | 2 |
| M40 Rear Compartment Lid Latch M40 Rear Compartment Lid Latch | 3 |
| S58A Rear Compartment Lid Unlatch Switch - Exterior S58A Rear Compartment Lid Unlatch Switch - Exterior | 4 |
| E7R License Plate Lamp - Right E7R License Plate Lamp - Right | 5 |
