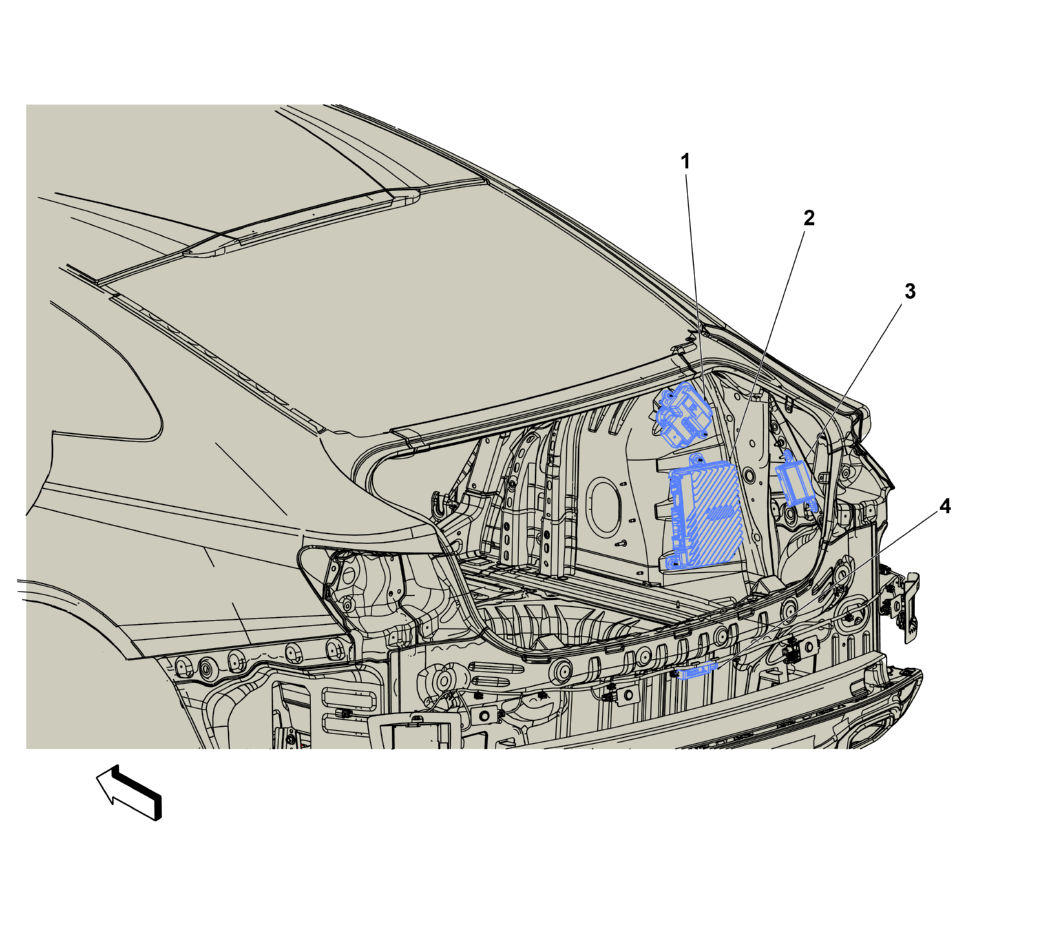

Rear Compartment Components - Right Side
Rear Compartment Components - Right Side
| Component Name | Callout |
|---|---|
| K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module ( ) | 1 |
| T3 Audio Amplifier (UQA) T3 Audio Amplifier X1 (UQA+NKC) , or T3 Audio Amplifier X2 (UQA+NKC) , or T3 Audio Amplifier X3 (UQA+NKC) , or T3 Audio Amplifier X4 (UQA+NKC) | 2 |
| K182 Parking Assist Control Module (UD5/UFQ) K182 Parking Assist Control Module X1 (UD7/UFQ/UKC) , or K182 Parking Assist Control Module X2 (UD7/UFQ/UKC) , or K182 Parking Assist Control Module X3 (UD7/UFQ/UKC) | 3 |
| T10G Keyless Entry Antenna - Rear Fascia T10G Keyless Entry Antenna - Rear Fascia | 4 |
