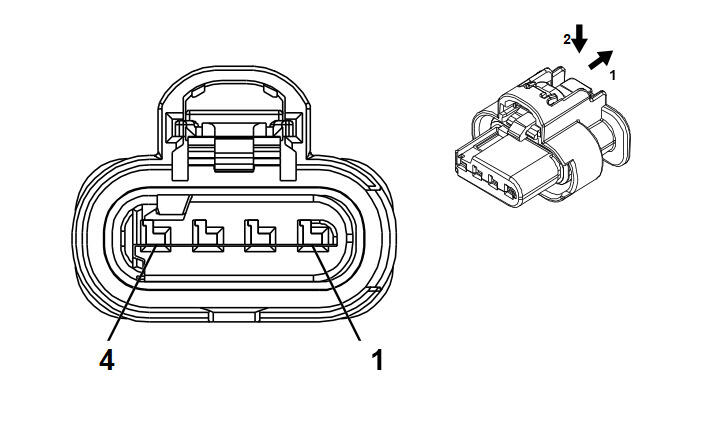

T8C Ignition Coil 3 (LFV)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 33390897
- Service Connector: 19367009
- Description: 4 - Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BK |
250 |
Ground |
I |
- |
| 2 |
0.5 |
BK/BU |
2129 |
Ignition Control Low Reference Bank 1 |
I |
- |
| 3 |
0.5 |
GN/BU |
2123 |
Ignition Control 3 |
I |
- |
| 4 |
1 |
VT/BU |
5291 |
Powertrain Main Relay Fused Supply Voltage 2 |
I |
- |
