S32LR Seat Heating Switch - Left Rear
 Courtesy of GENERAL MOTORS COMPANY
|

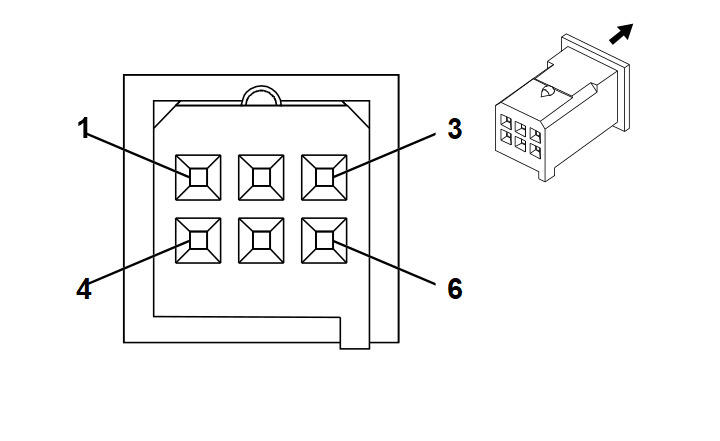

Connector Part Information
- Harness Type: Left Rear Door
- OEM Connector: 10768368
- Service Connector: Service by Harness - See Part Catalog
- Description: 6 - Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
2150 |
Ground |
I |
- |
| 2 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
| 3 |
0.35 |
BN/WH |
1637 |
Left Rear Seat Heating Switch Signal |
I |
- |
| 4 |
0.35 |
WH |
1638 |
Left Rear Seat Heating High Indicator Control |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
