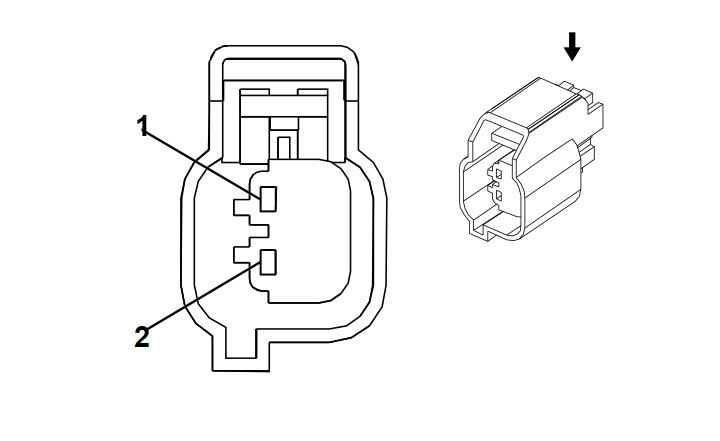

P19AA Speaker - Right Subwoofer (UQA)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: R63461-004C
- Service Connector: 19119898
- Description: 2 - Way F 150 GT Series (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
GY/BK |
315 |
Right Subwoofer [-] Control |
I |
- |
| 2 |
0.75 |
GN/VT |
1795 |
Right Subwoofer [+] Control |
I |
- |
