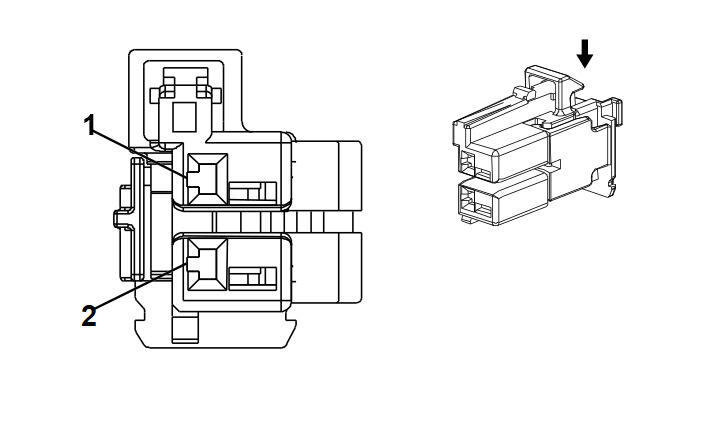

B14C Transmission Input Shaft Speed Sensor (MRG)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Transmission
- OEM Connector: 13595447
- Service Connector: Service by Harness - See Part Catalog
- Description: 2 - Way F 1.2 MCON Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/BU |
4171 |
Transmission Input Shaft Speed Sensor Circuit 9V Reference |
I |
- |
| 2 |
0.5 |
GN/YE |
6353 |
Input Speed Signal |
I |
- |
