Installation Procedure

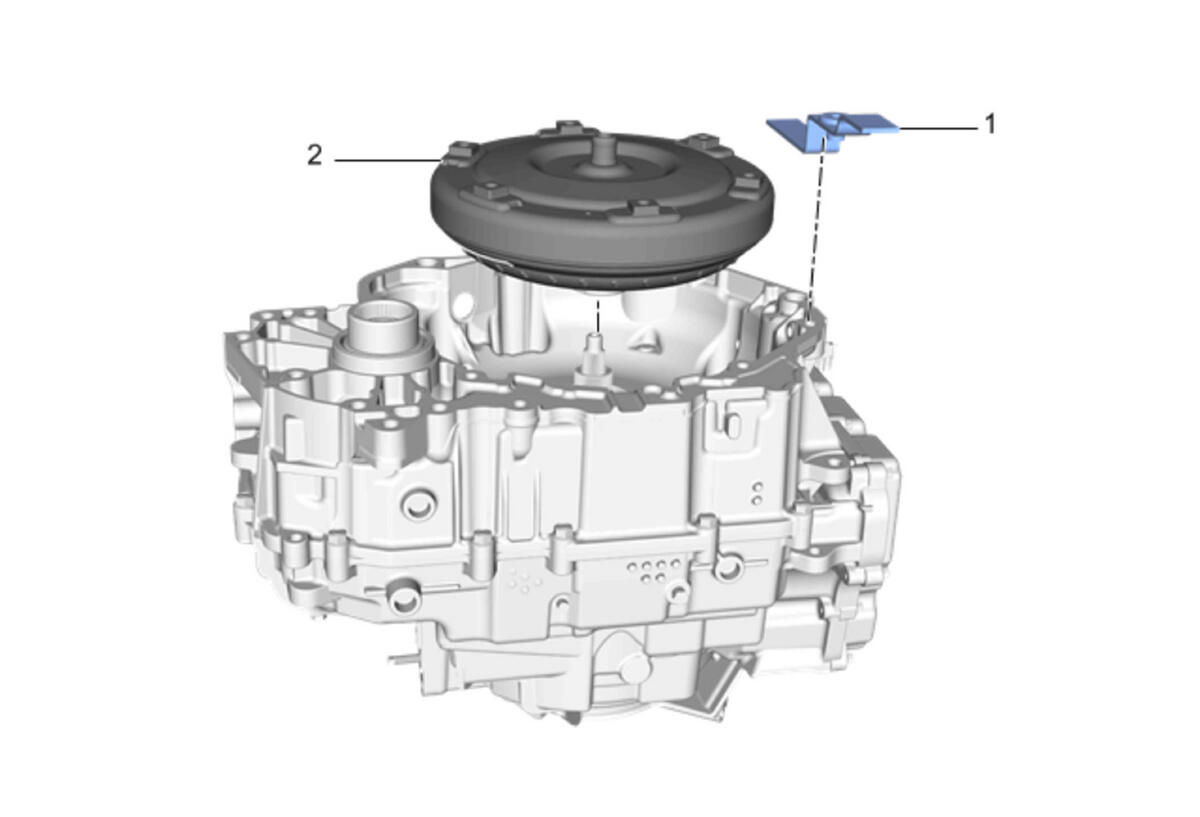

  1. GM3788523Courtesy of GENERAL MOTORS COMPANY

    Install the torque converter assembly (2) to the transmission.

  2. Install the converter holding strap (1).
  3. Install the transmission. Transmission Replacement (FWD) , or Transmission Replacement (AWD)
  4. Perform the transmission adaptive values learn procedure. Transmission Adaptive Values Learn
