Installation Procedure

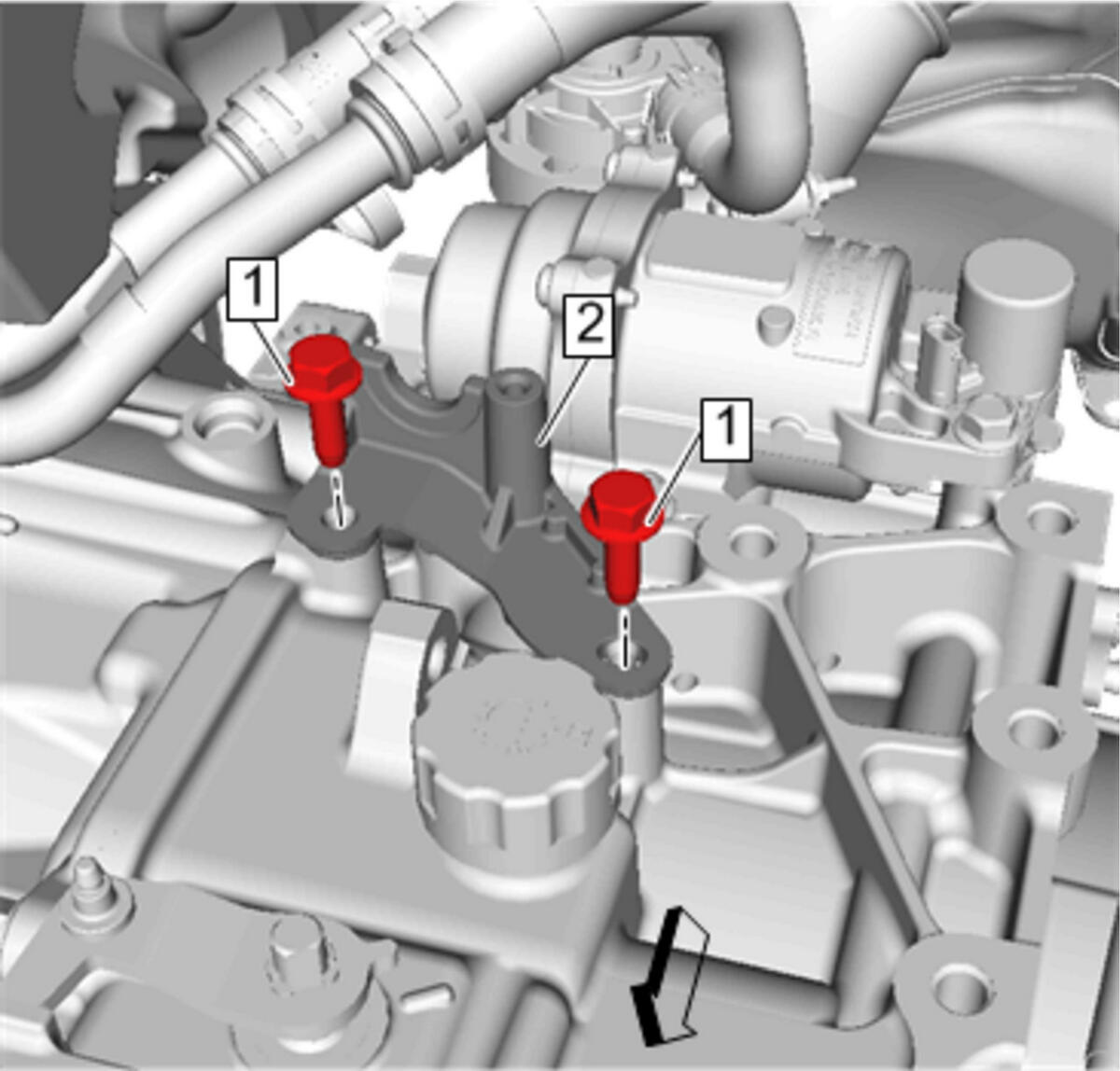

  1. GM4686788Courtesy of GENERAL MOTORS COMPANY

    Install the automatic transmission range selector lever cable bracket (2).

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 automatic transmission range selector lever cable bracket bolts (1) and tighten to 22 N.m (16 lb-ft).
  3. Install the automatic transmission range selector lever cable to the automatic transmission range selector lever cable bracket. Range Selector Lever Cable Replacement
