Installation Procedure

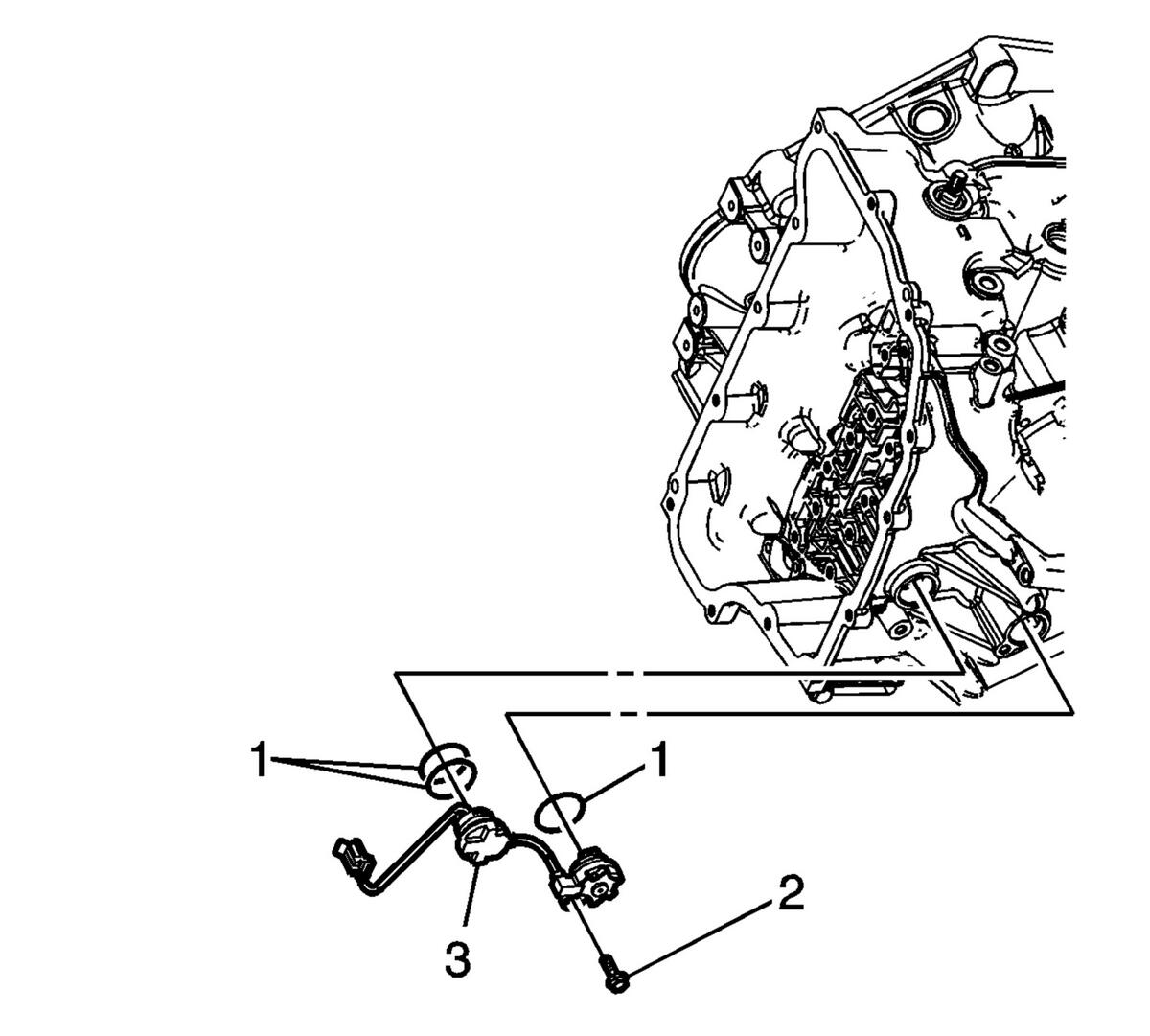

  1. GM1998841Courtesy of GENERAL MOTORS COMPANY

    Install the 3 input speed sensor seals (1).

  2. Install the input speed sensor (3).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the input speed sensor bolt (2) M6 x 23 and tighten to 9 N.m (80 lb/in).
  4. GM1998829Courtesy of GENERAL MOTORS COMPANY

    Connect the input speed sensor electrical connector (1).

  5. Install the control solenoid valve and transmission control module assembly. Refer to Control Solenoid Valve and Transmission Control Module Assembly Replacement .
  6. Perform the service fast learn adapt procedure.
