Removal Procedure

  1. Remove the front floor console transmission shift opening bezel. Front Floor Console Transmission Shift Opening Bezel Replacement (Terrain)

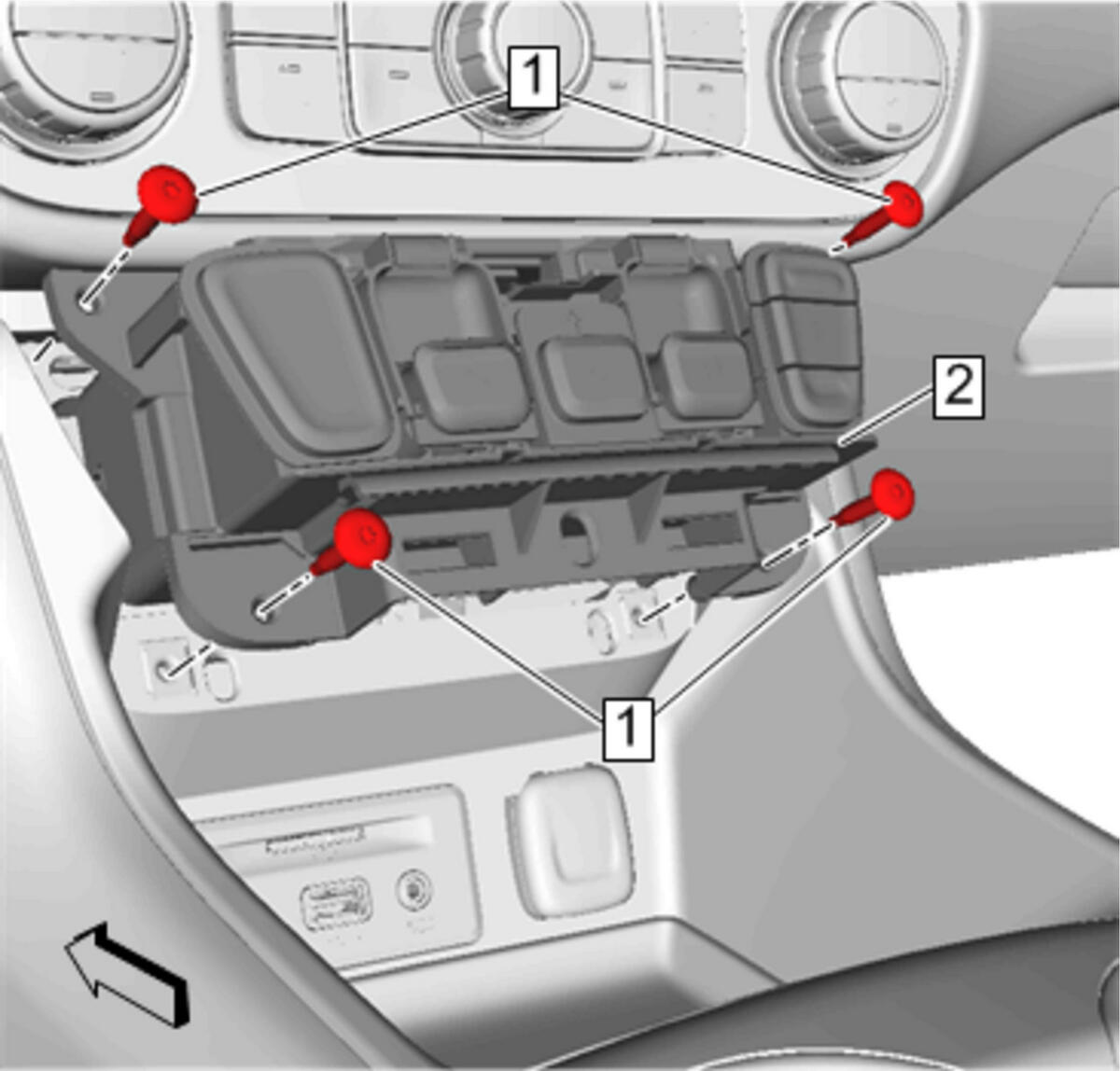

  2. GM4694657Courtesy of GENERAL MOTORS COMPANY

    Remove the screws (1)

  3. Remove the electronic transmission shift control pushbutton assembly (2)
  4. Disconnect the electrical connector.
