Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Use care when removing or installing the filter plate assembly. A broken or missing retaining tab may not adequately secure the filter plate to the control solenoid valve assembly, resulting in possible damage or contamination.

Install a NEW control solenoid valve assembly filter plate (4) to prevent fluid leaks past the fluid seals.

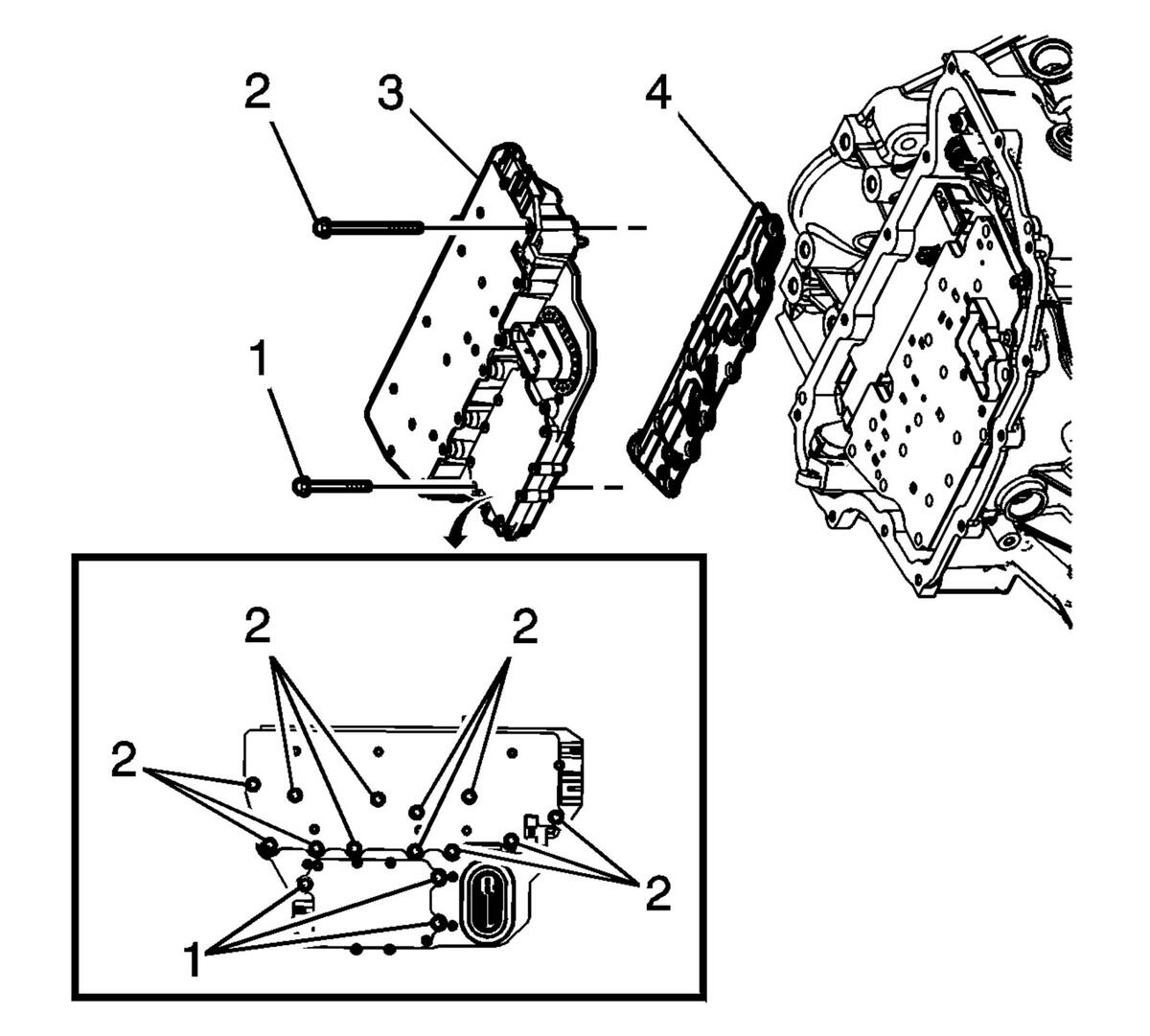

Install the control solenoid valve assembly with transmission control module (3).
Hand start the control valve body bolts (1, 2).

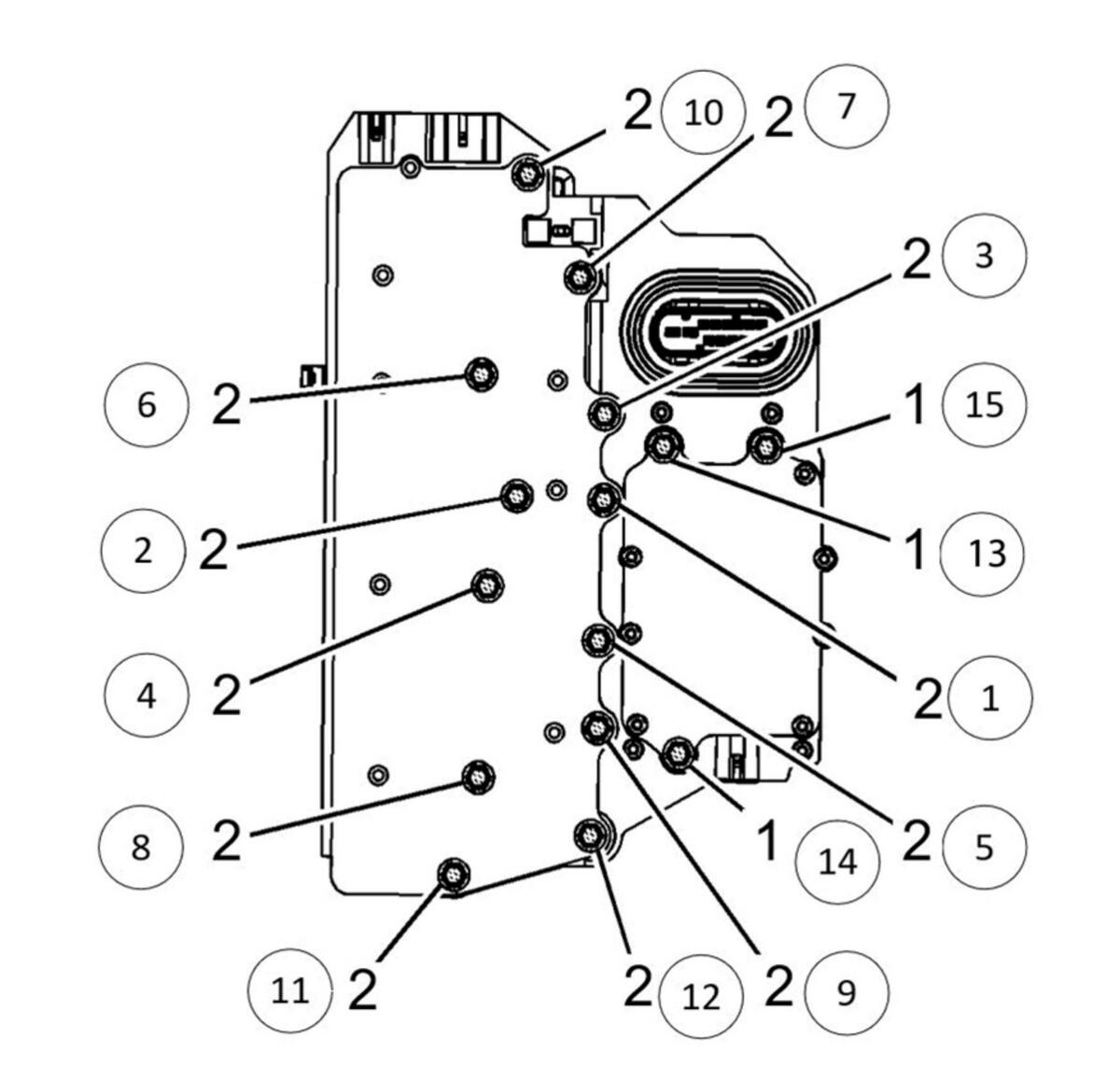

Fig 1: Control Solenoid Valve Assembly Bolts Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Secure the 12 control solenoid valve assembly bolts (2) M6 x 97 and tighten in sequence to 10 N.m (89 lb/in).
Secure the 3 control valve body bolts (1) M5 x 40.5 and tighten in sequence to 7 N.m (62 lb/in).
Courtesy of GENERAL MOTORS COMPANY

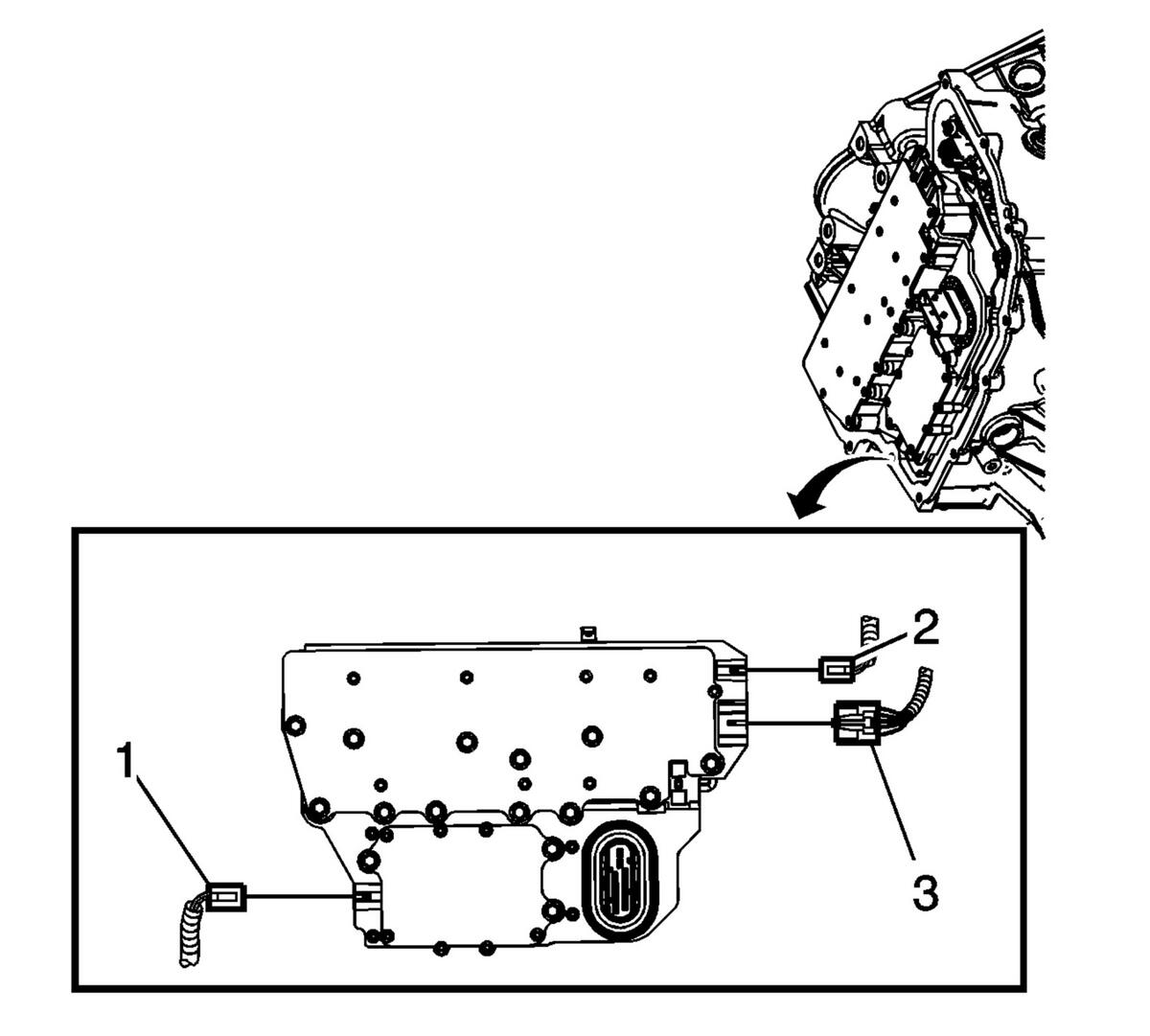

Connect the input speed sensor electrical connector (1).
Connect the output speed sensor electrical connector (2).
Connect the shift position switch electrical connector (3).
Install the transmission control valve body cover. Control Valve Body Cover Replacement
After repairs, refer to Control Module References for programming and set up procedures.
Perform the transmission adaptive values learn. Transmission Adaptive Values Learn
