Forward Collision Alert Display Bezel Replacement (Terrain)

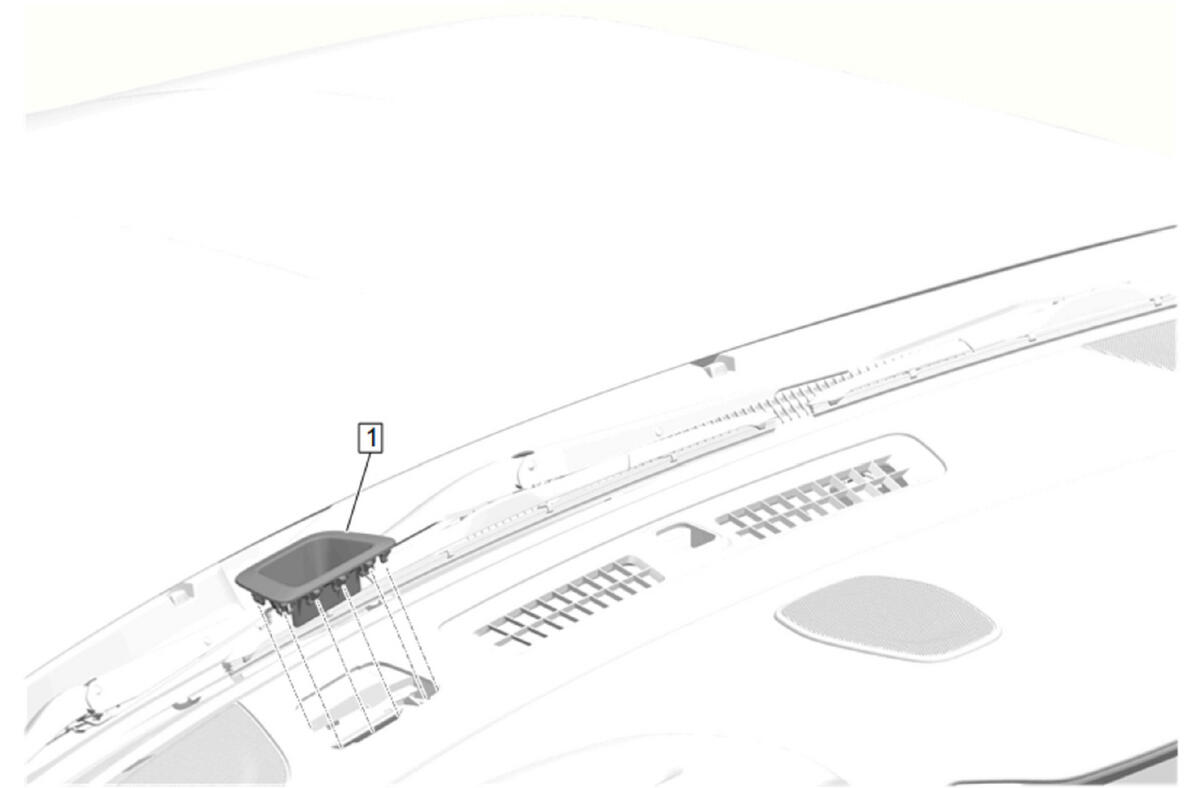

GM5657711Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Forward Collision Alert Display Bezel
Procedure
Using A Suitable Flat-Bladed Plastic Tool, Work The Tool Around The Bezel To Release The Retainers.
