Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect The Electrical Connector.

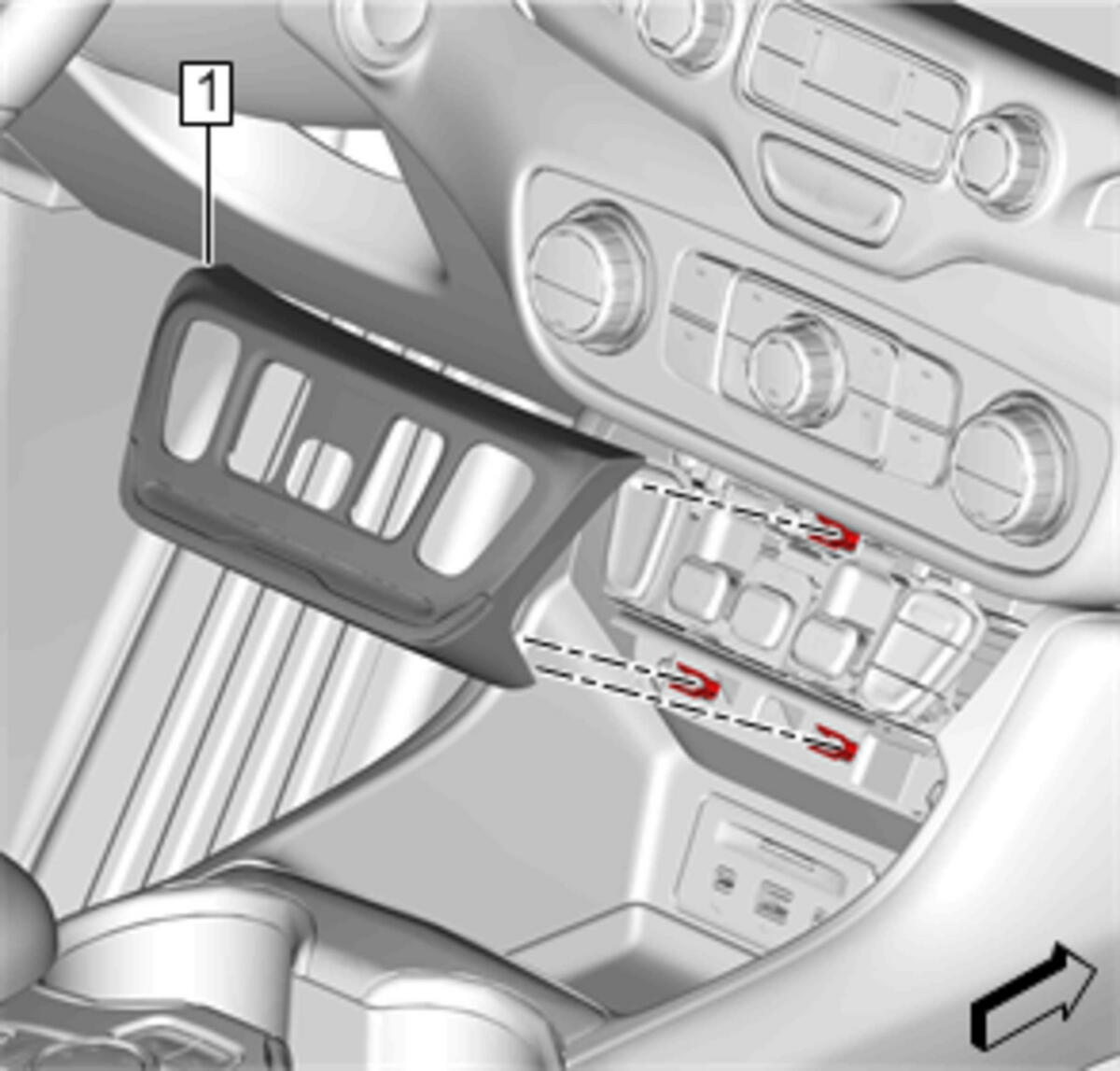

Instrument Panel Trim Pad - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer To Fastener Caution .

Connect The Electrical Connector.

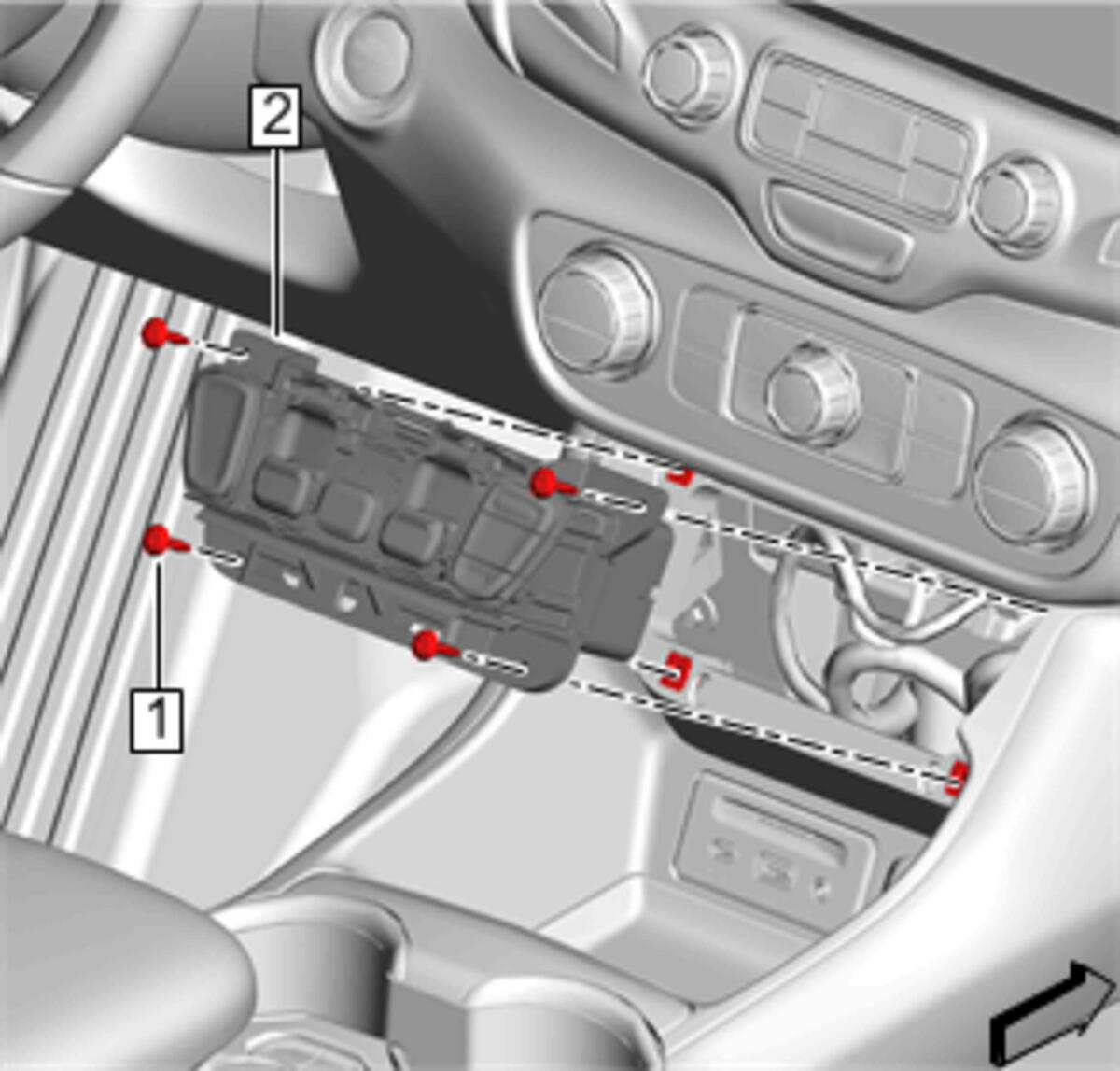

Electronic Transmission Shift Control Pushbutton (2) - Install
Automatic Transmission Control Bolt (1) - Install And Tighten [ 4X ] 2.5 N.m (22 lb/in)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Transmission Shift Opening Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad Bolt (1) - Install And Tighten 2.5 N.m (22 lb/in)
Courtesy of GENERAL MOTORS COMPANY

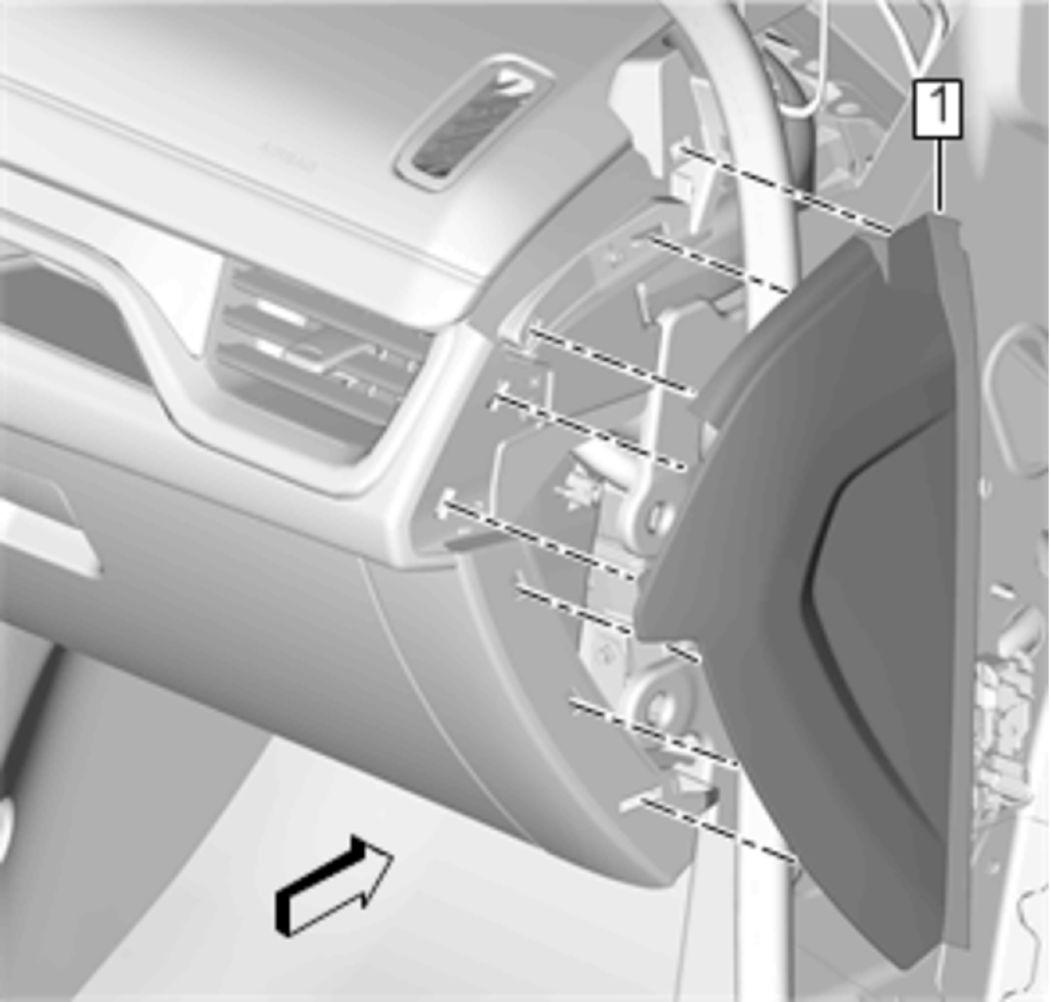

Instrument Panel Outer Trim Cover - Right Side (1) - Install
Ensure That The Weatherstrip Is Fully Seated.
