Installation Procedure

  1. GM4707492Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install

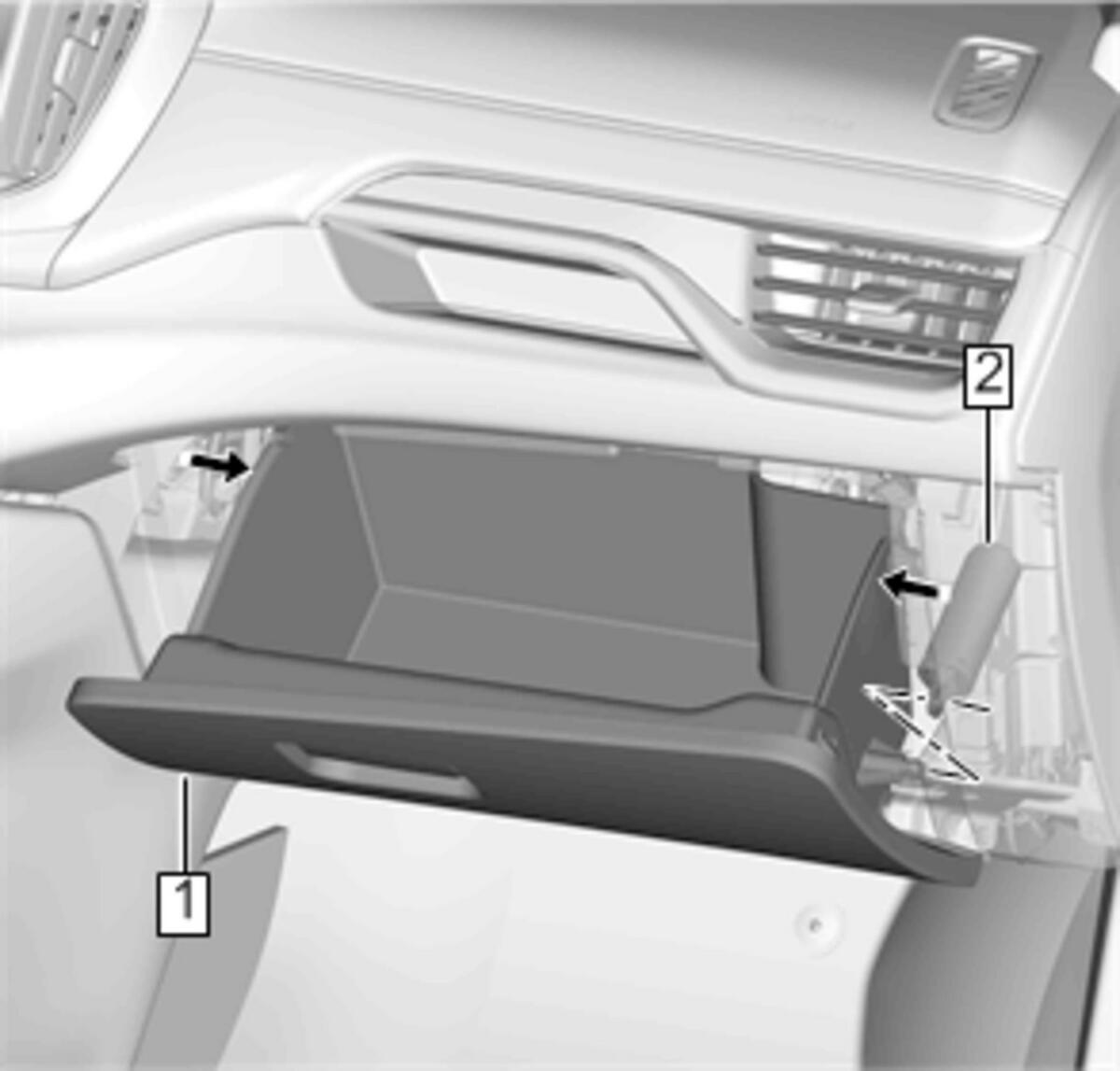

  2. GM4707491Courtesy of GENERAL MOTORS COMPANY

    Squeeze The Sides Of The Instrument Panel Compartment Door (1) To Allow The Door To Go Past The Stops.

  3. Connect The Instrument Panel Compartment Door Dampener (2) To The Instrument Panel Compartment Door (1).
  4. Instrument Panel Compartment Door (1) - Close
