Installation Procedure

  1. GM4586823Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (1) - Install

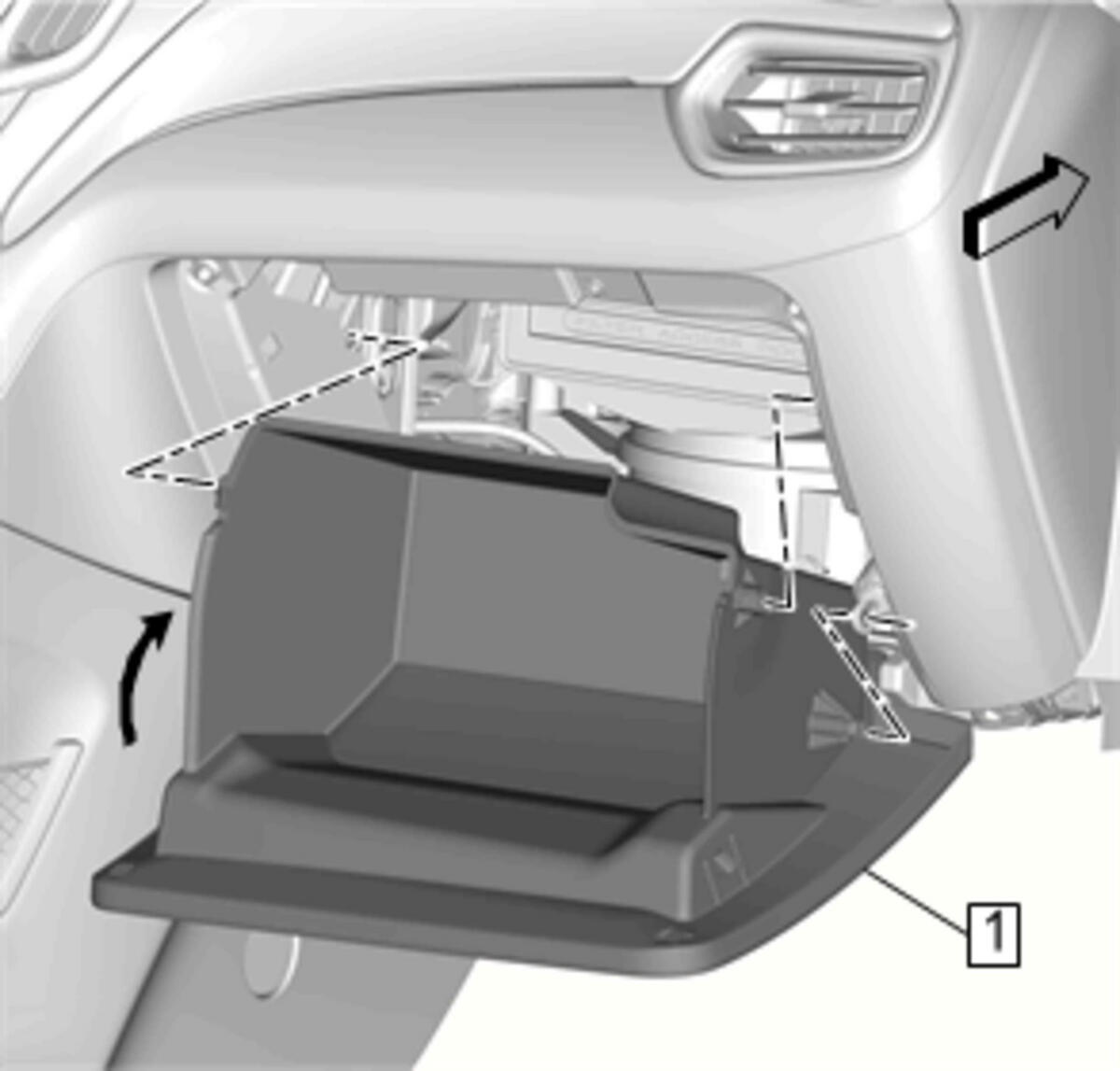

  2. GM4583881Courtesy of GENERAL MOTORS COMPANY

    Squeeze The Sides Of The Instrument Panel Compartment (1) To Allow The Door To Go Past The Stops.

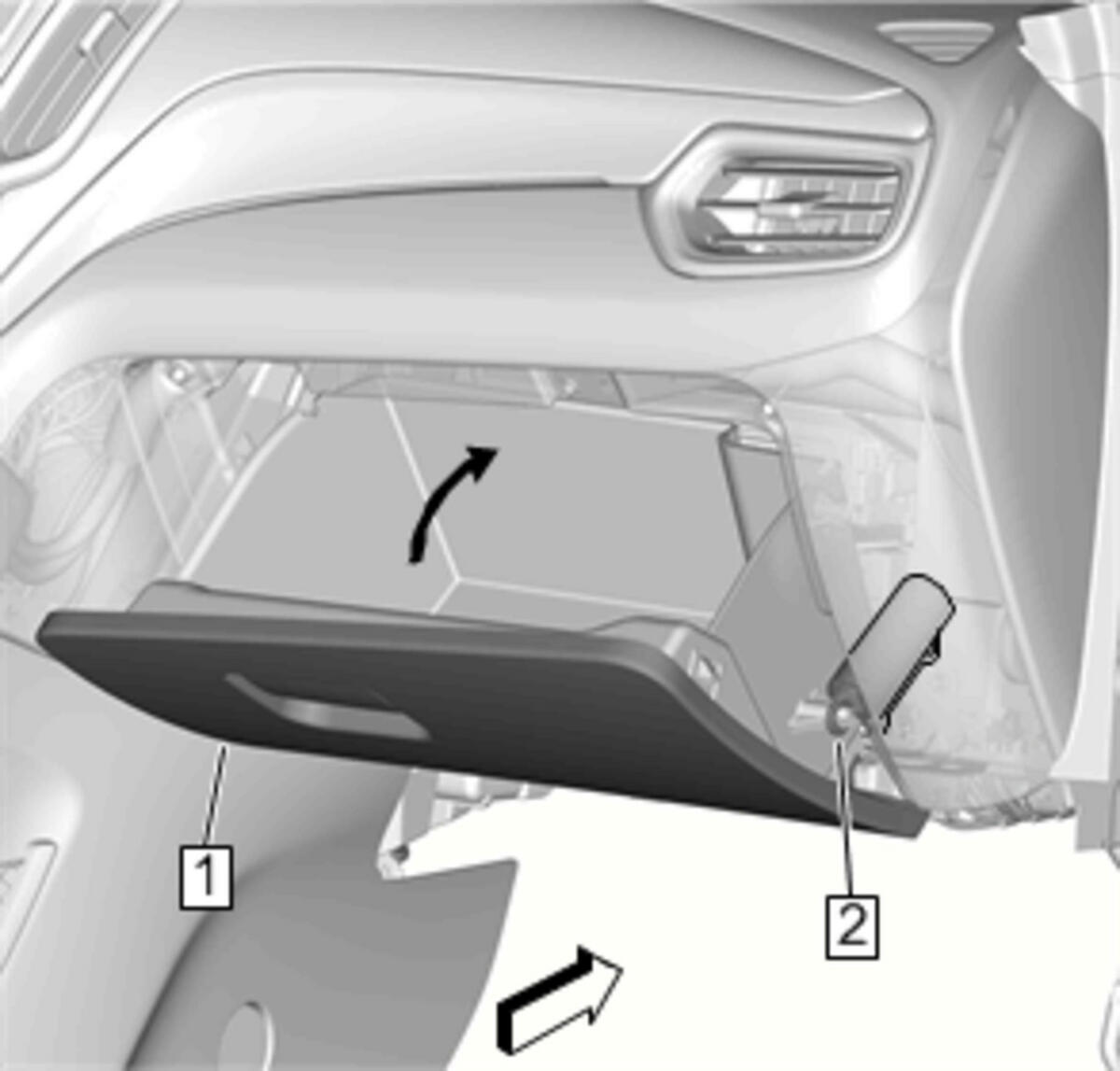

  3. GM4583884Courtesy of GENERAL MOTORS COMPANY

    Connect The Instrument Panel Compartment Door Dampener (2) To The Instrument Panel Compartment Door (1).

  4. Instrument Panel Compartment Door (1) - Close
