Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

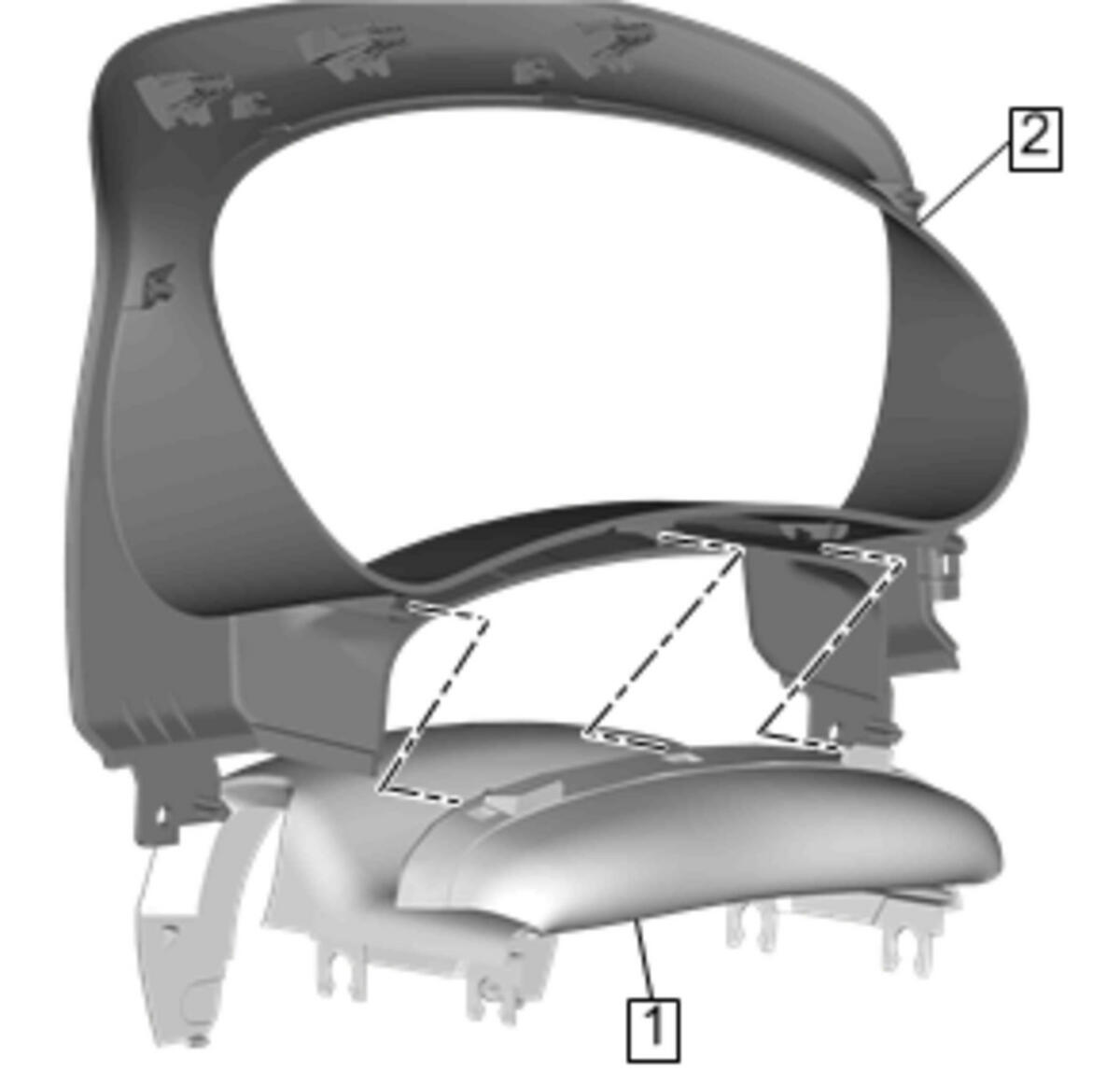

Align The Steering Column Upper Trim Cover (1) To The Instrument Panel Cluster Trim Plate (2).

Courtesy of GENERAL MOTORS COMPANY

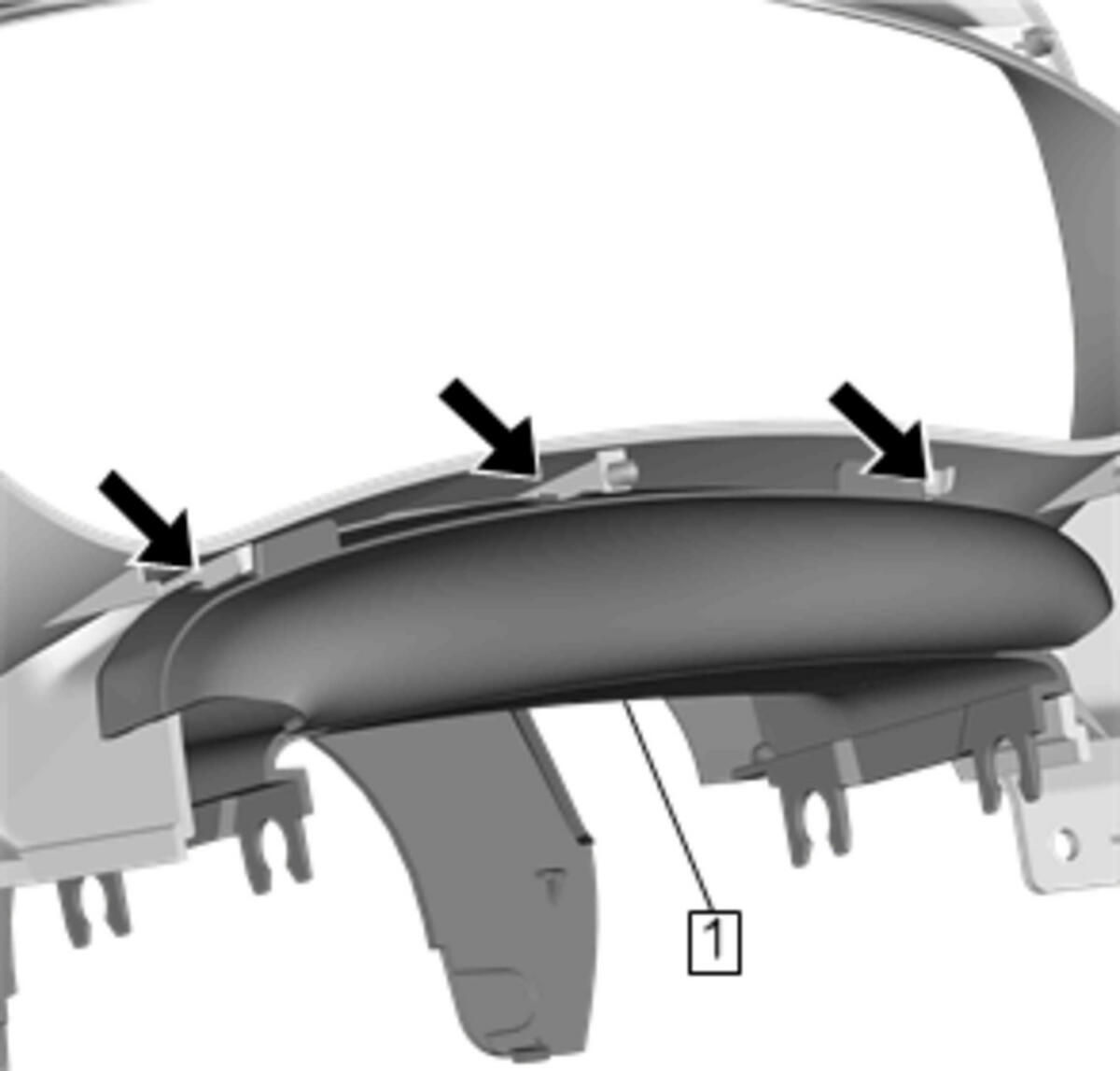

Secure The Steering Column Upper Trim Cover Closeout (1) To The Instrument Panel Cluster Trim Plate.

Courtesy of GENERAL MOTORS COMPANY

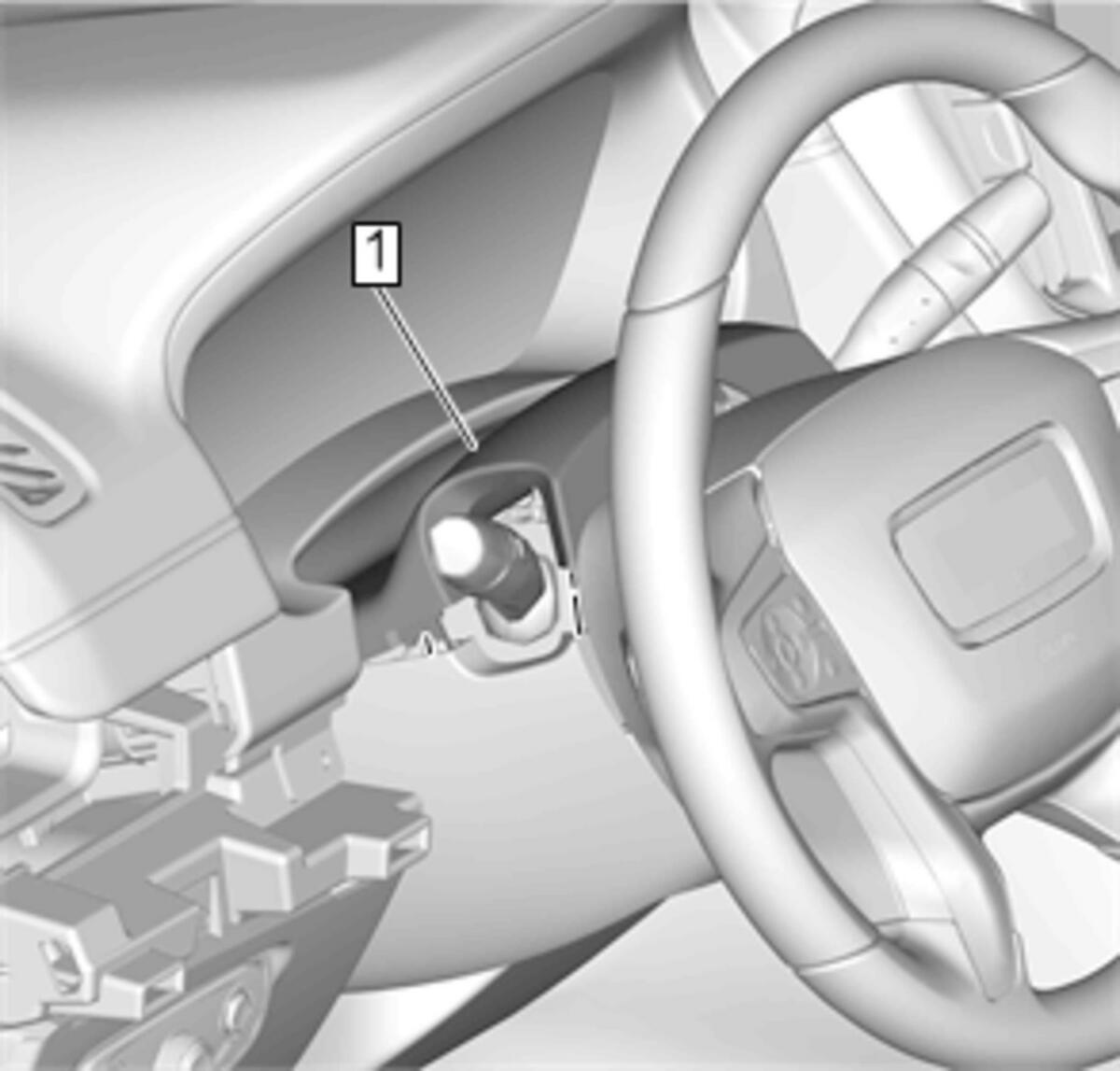

Instrument Panel Cluster Trim Plate (1) - Install

Courtesy of GENERAL MOTORS COMPANY

Secure The Steering Column Upper Trim Cover (1) To The Steering Column Lower Trim Cover.

Courtesy of GENERAL MOTORS COMPANY

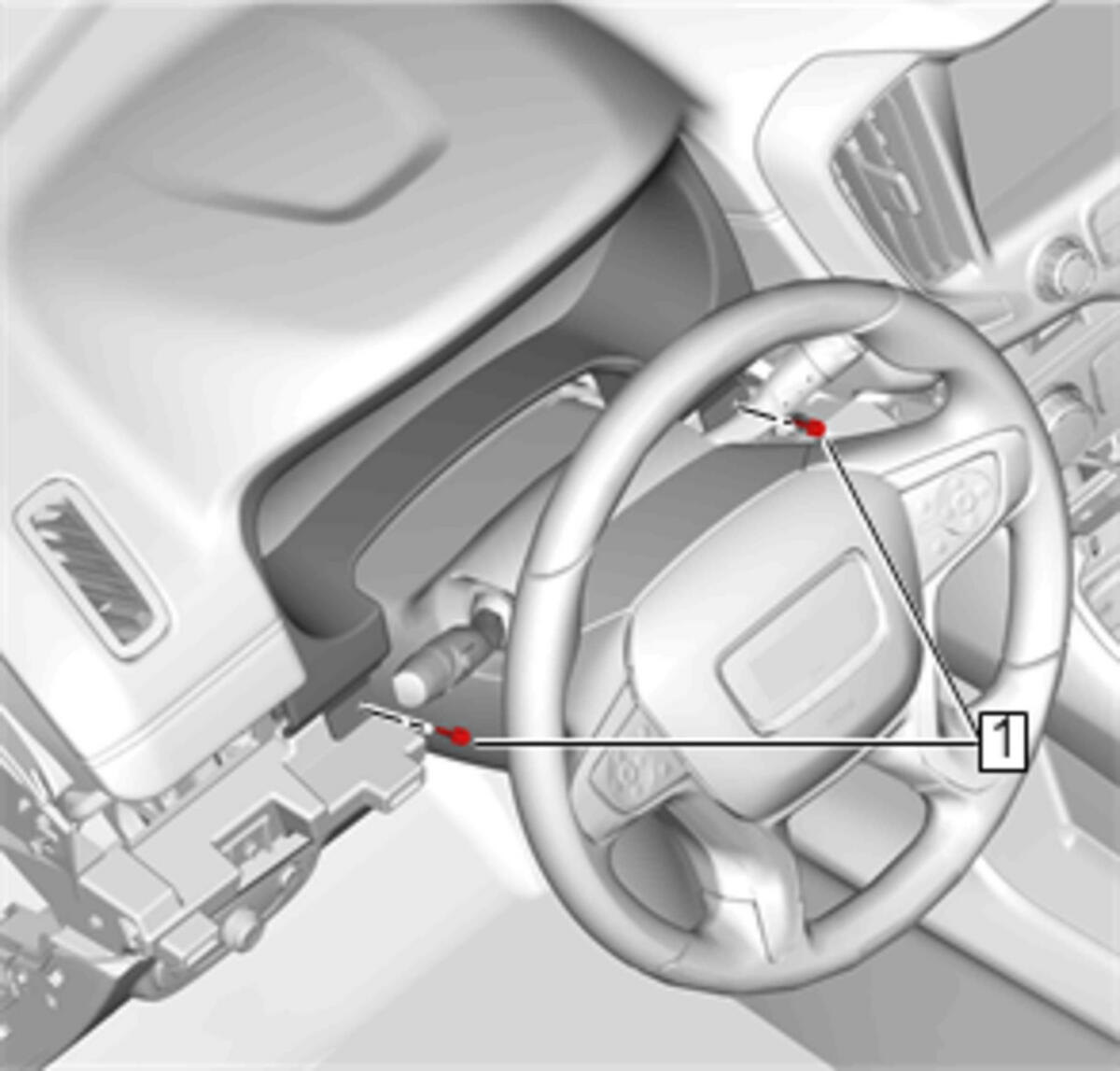

Instrument Panel Cluster Trim Plate Bolt (1) - Install And Tighten [ 2X ] 2.5 N.m (22 lb/in)

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side (Terrain)
