Installation Procedure

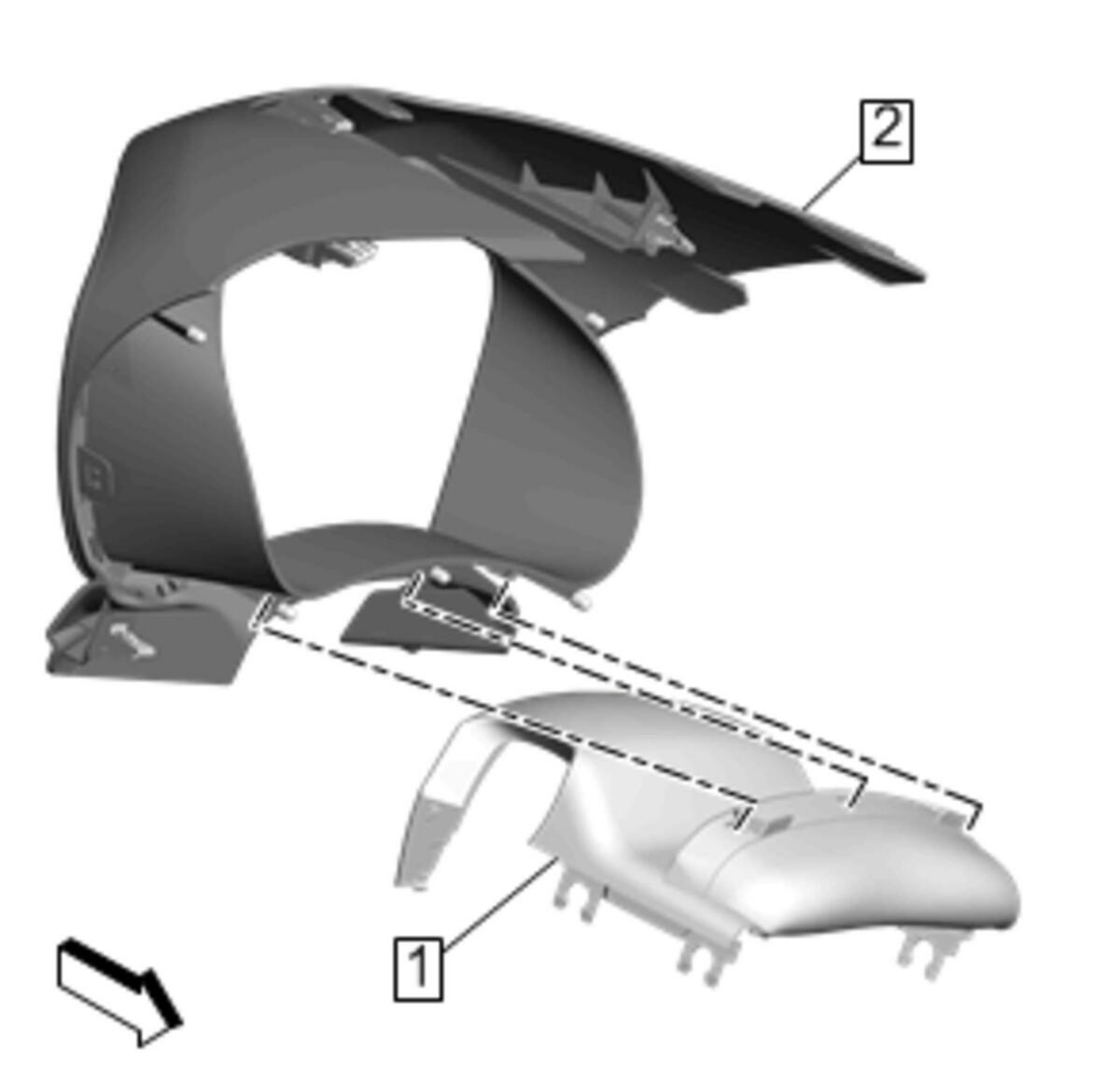

  1. GM4587690Courtesy of GENERAL MOTORS COMPANY

    Align The Steering Column Upper Trim Cover (1) To The Instrument Panel Cluster Trim Plate (2).

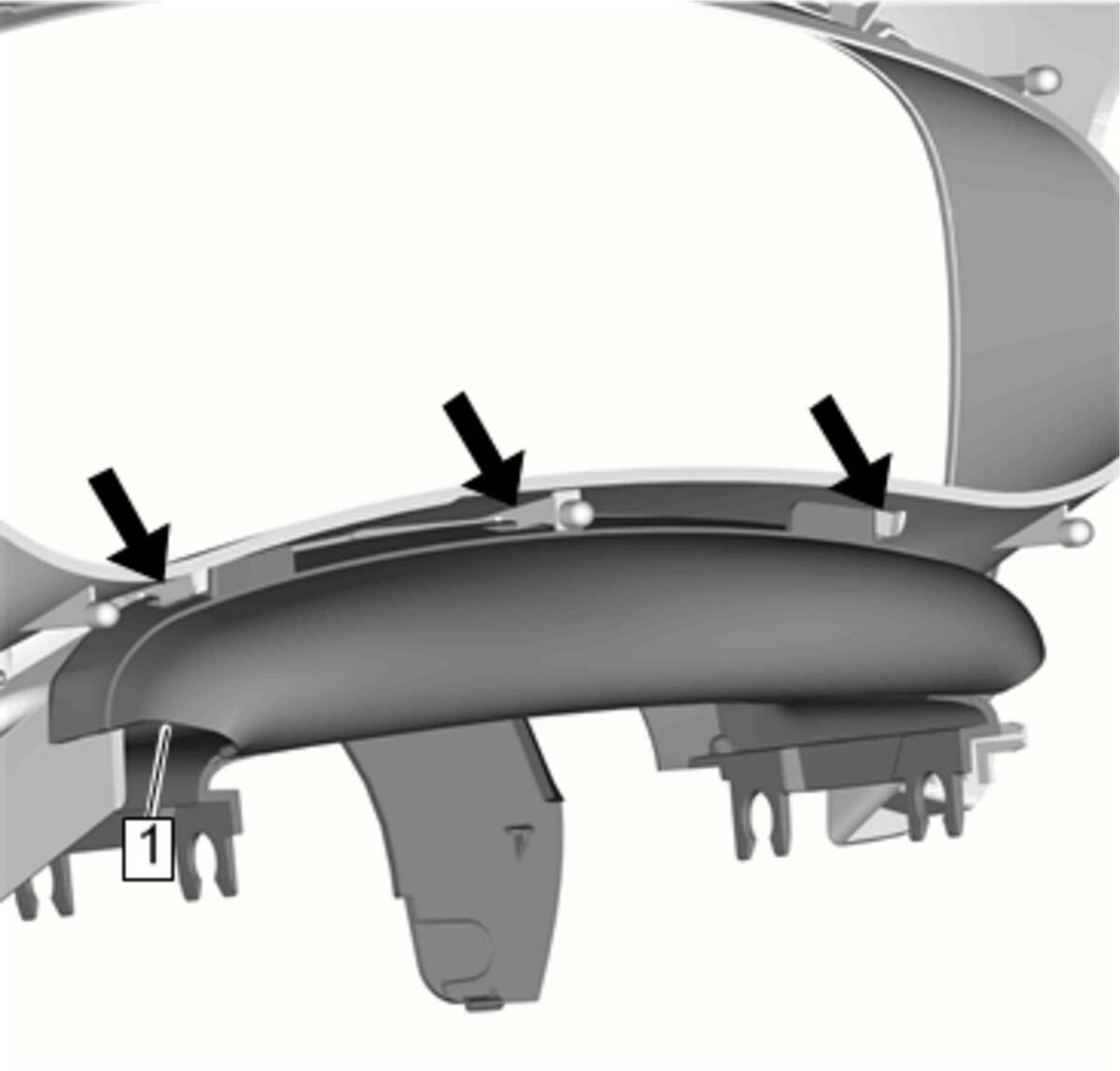

  2. GM4581454Courtesy of GENERAL MOTORS COMPANY

    Secure The Steering Column Upper Trim Cover Closeout (1) To The Instrument Panel Cluster Trim Plate.

  3. GM4562630Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install

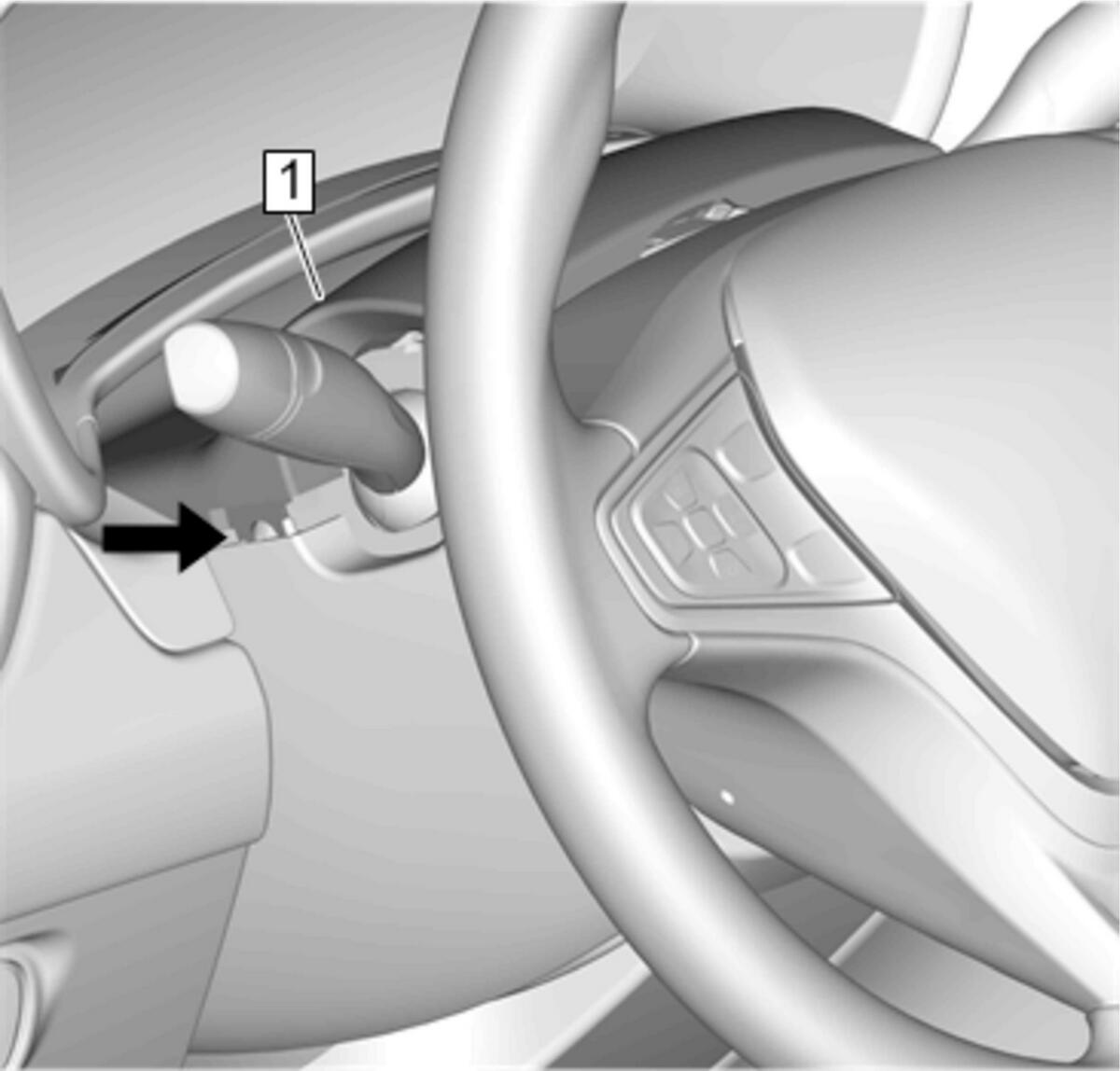

  4. GM4581185Courtesy of GENERAL MOTORS COMPANY

    Secure The Steering Column Upper Trim Cover (1) To The Steering Column Lower Trim Cover. Steering Column Upper Trim Cover Replacement (Equinox)
