Installation Procedure

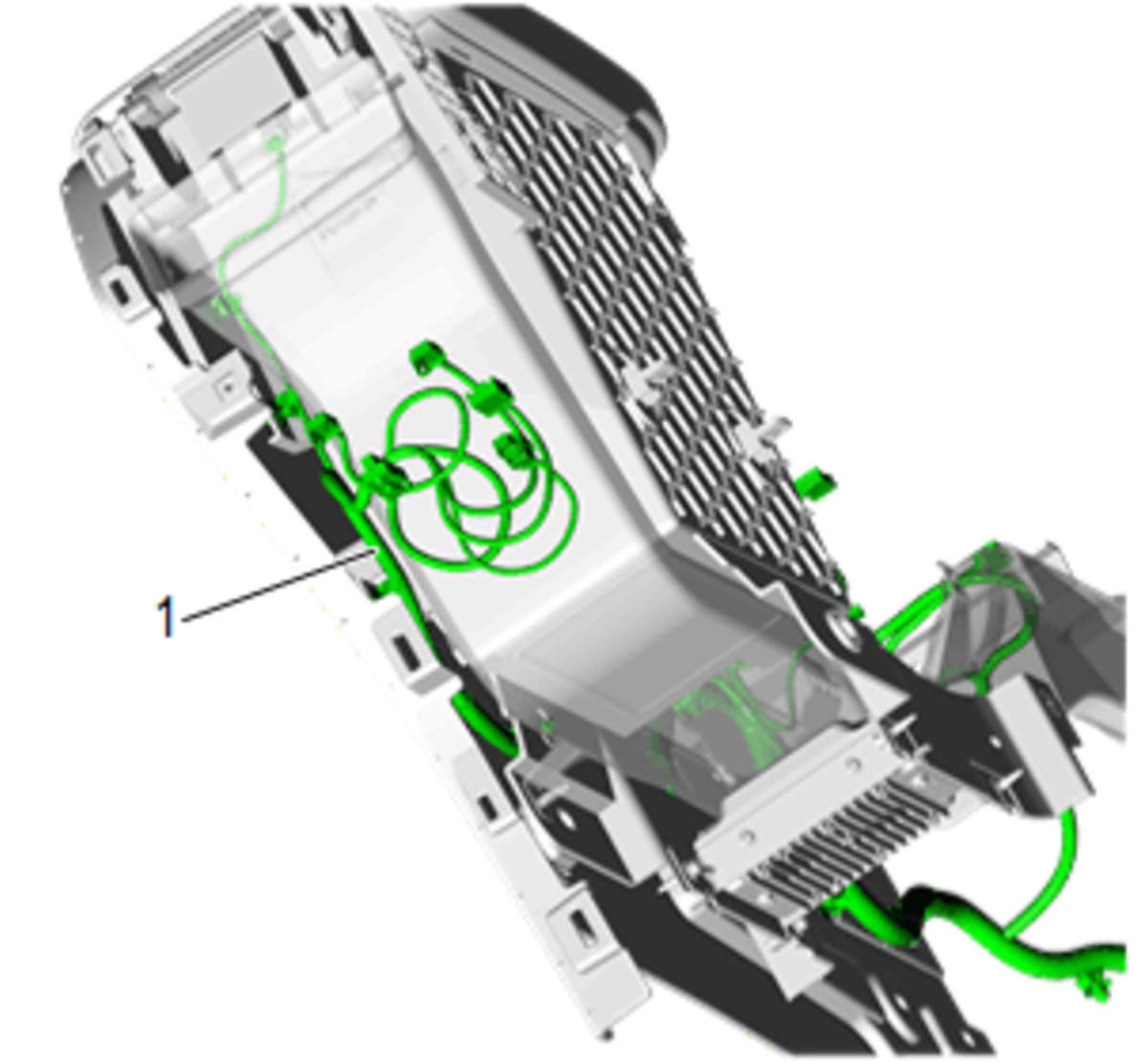

Position The Front Floor Console Wiring Harness (1) And Connect The Harness Retainers And The Connectors.
Position The Front Floor Console Wiring Harness (1) And Connect The Harness Retainers And The Connectors.
Front Floor Lower Console - Right Side (3) - Install
- Front Floor Console Rear Air Duct Retainer (2) - Install [ 2X ]
- Front Floor Console Bolt (1) - Install And Tighten [ 4X ] 2.5 N.m (22 lb/in)
Front Floor Console Rear Trim Panel (2) - Install - Front Floor Console Rear Trim Panel Replacement (Equinox) , or Front Floor Console Rear Trim Panel Replacement (Terrain)
Front Floor Console (1) - Install - Front Floor Console Replacement (Equinox) , or Front Floor Console Replacement (Terrain)
CAUTION:
Refer To Fastener Caution .
