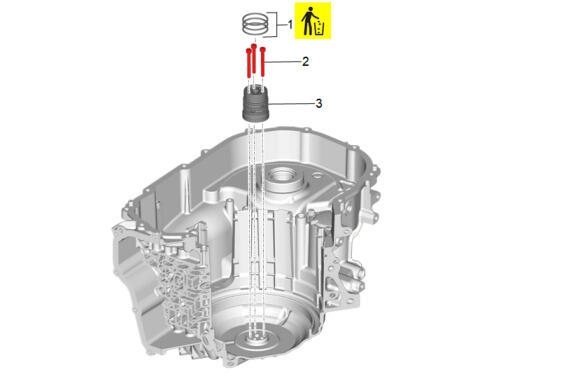

Input Shaft Support Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	3-5 Reverse and 4-5-6 Clutch Fluid Seals (Qty: 3) NOTE: Discard the fluid seals. They are not reusable. Refer to 3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring Replacement .
2	Input Shaft Support Bolts M6 x 50 (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb/in)
3	Input Shaft Support NOTE: Inspect the support for wear, damage or porosity.
