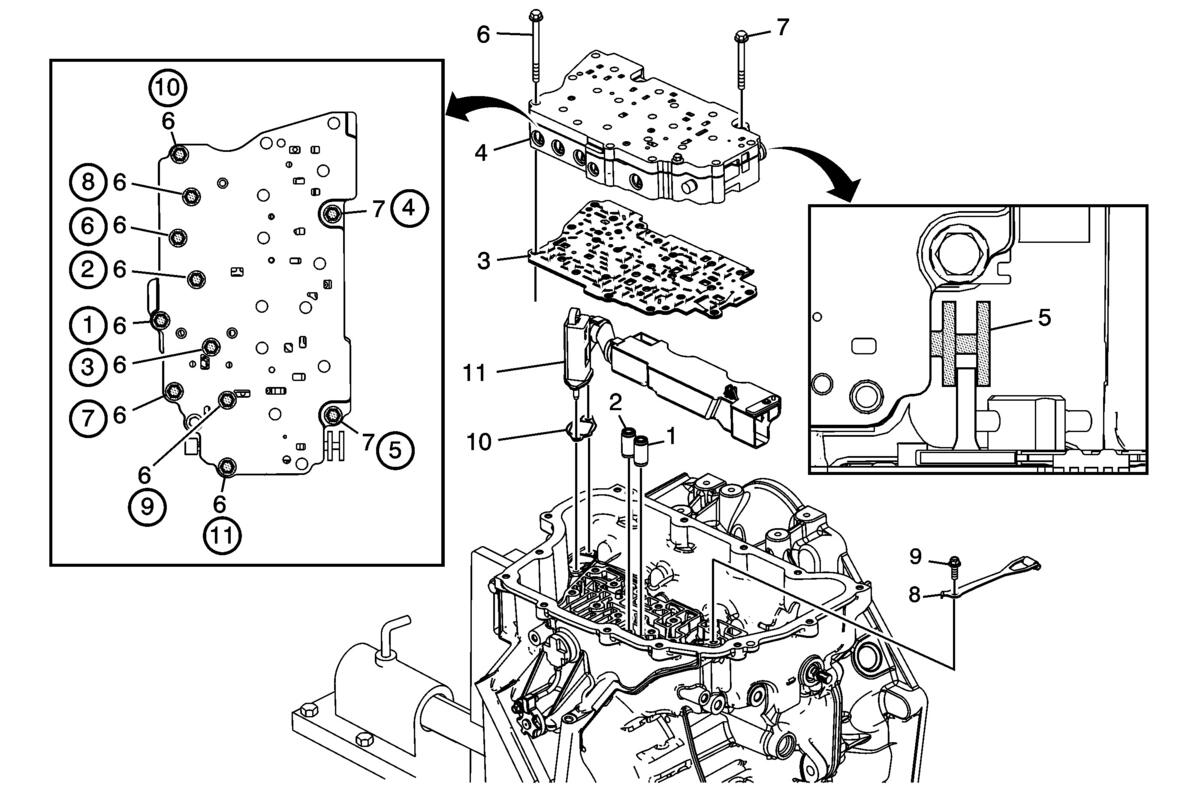

Control Valve Body Assembly Installation
| Callout | Component Name |
|---|---|
| 1 | Low and Reverse Clutch Fluid Passage Seal |
| 2 | 1-2-3-4 Clutch Fluid Passage Seal |
| 3 | Control Valve Body Spacer Plate Assembly |
| 4 | Control Valve Body Assembly |
| 5 | Manual Valve
NOTE:
Align the manual valve to the rod on the manual shift detent lever. |
| 6 | Control Valve Body Bolt M6 x 60 (Qty: 9)
CAUTION:
Refer to Fastener Caution . Tighten 11 N.m (97 lb/in) |
| 7 | Control Valve Body Bolt M6 x 53 (Qty: 2) Tighten 11 N.m (97 lb/in) |
| 8 | Manual Shaft Detent Lever Spring Assembly |
| 9 | Manual Shaft Detent Spring Bolt M6 x 16 (Qty: 1) Tighten 12 N.m (106 lb/in) |
| 10 | Fluid Level Control Valve Gasket |
| 11 | Fluid Level Control Valve |
