Transmission Case Assembly
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

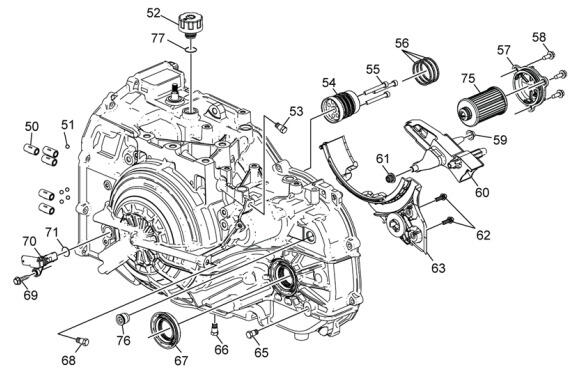

| Callout | Component Name |
|---|---|
| 50 | 1-2-3-4 Low and Reverse Clutch Fluid Passage Seal |
| 51 | Control Valve Body Ball Check Valve |
| 52 | Transmission Fluid Filler Cap |
| 53 | Automatic Transmission Fluid Pressure Test Hole Plug |
| 54 | Input Shaft Support |
| 55 | Input Shaft Support Bolt |
| 56 | 3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring |
| 57 | Automatic Transmission Fluid Filter Cover |
| 58 | Automatic Transmission Fluid Filter Cover Bolt |
| 59 | Drive Link Lubricant Fluid Seal |
| 60 | Drive Link Lubricant Scoop |
| 61 | Drive Link Lubricant Fluid Seal |
| 62 | Front Differential Carrier Baffle Bolt |
| 63 | Front Differential Carrier Baffle |
| 65 | Automatic Transmission Fluid Level Hole Plug |
| 66 | Automatic Transmission Fluid Pan Drain Plug |
| 67 | Front Wheel Drive Shaft Oil Seal |
| 68 | Automatic Transmission Case Hole Plug |
| 69 | Automatic Transmission Input Speed Sensor Bolt |
| 70 | Automatic Transmission Input Speed Sensor |
| 71 | Automatic Transmission Input Speed Sensor Seal - O-Ring |
| 75 | Automatic Transmission Fluid Filter |
| 76 | Automatic Transmission Case Hole Plug |
| 77 | Automatic Transmission Fluid Filter Cap Seal |
