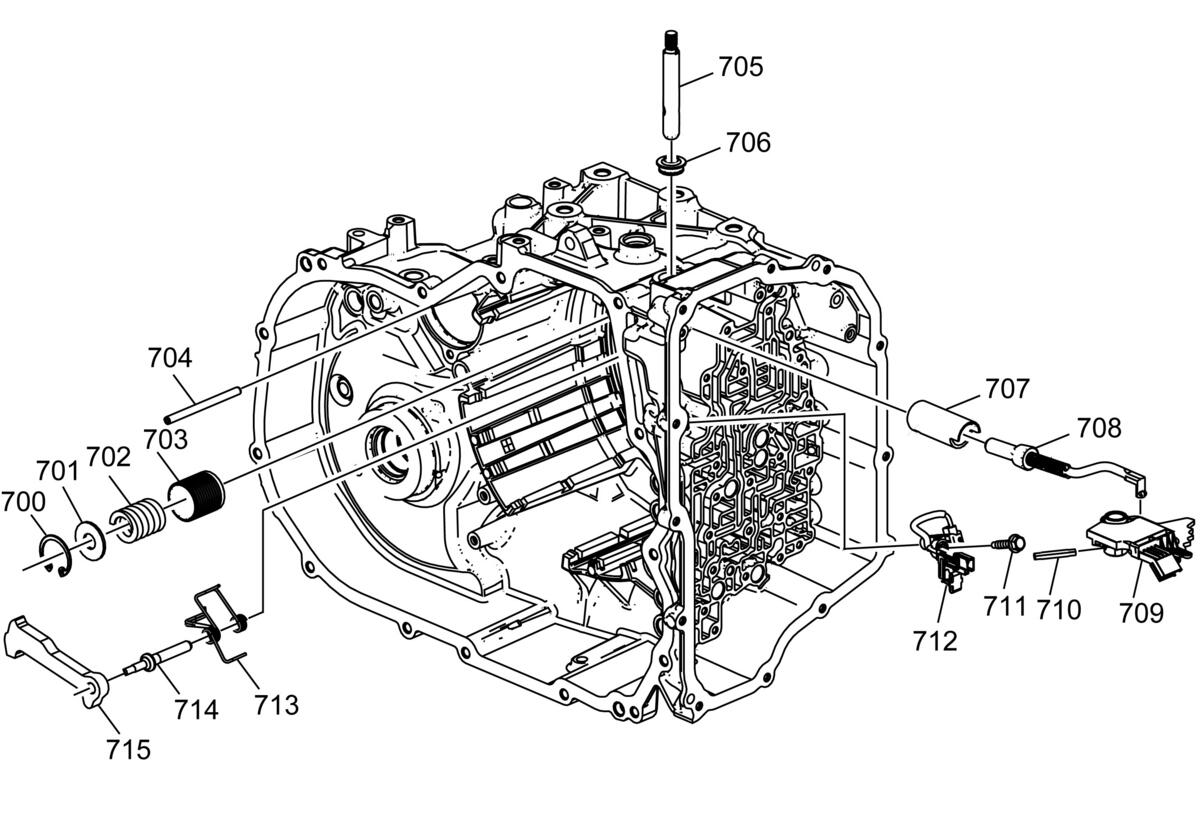

Park System Components (without ETRS)
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 700 | 4th Clutch Accumulator Piston Retaining Ring |
| 701 | 4th Clutch Accumulator Piston Spring Washer |
| 702 | 4th Clutch Accumulator Piston Spring |
| 703 | 4th Clutch Accumulator Piston |
| 704 | Park Pawl Actuator Guide Pin |
| 705 | Manual Shift Detent Lever Shaft |
| 706 | Manual Shift Shaft Seal |
| 707 | Park Pawl Actuator Guide |
| 708 | Park Pawl Actuator |
| 709 | Manual Shift Detent Lever |
| 710 | Manual Shift Detent Lever Pin |
| 711 | Automatic Transmission Output Speed Sensor Bolt |
| 712 | Automatic Transmission Output Speed Sensor |
| 713 | Park Pawl Spring |
| 714 | Park Pawl Shaft |
| 715 | Park Pawl |
